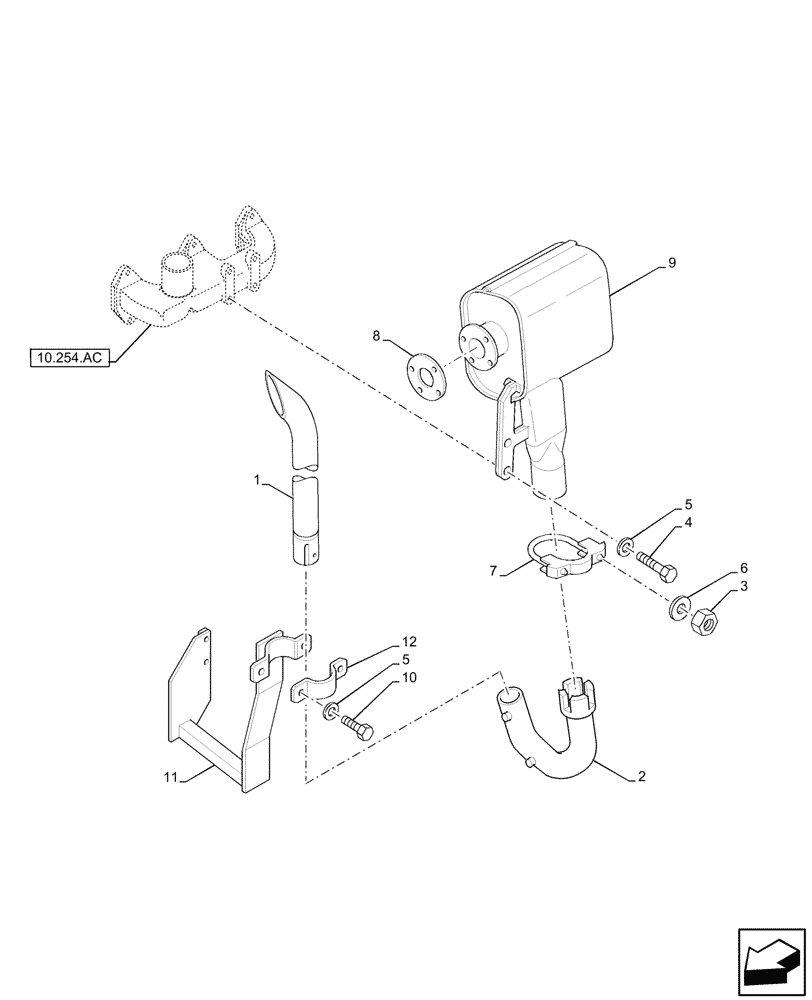

Запчасти Case IH JX95HC PLUS (10.254.010) - STD + VAR 390199 - EXHAUST SYSTEM, VERTICAL EXHAUST (10) - ENGINE

1

5091091

EXHAUST SYSTEM PIPE

Vertical

1шт.

2

5095425

ELBOW

1шт.

3

12164711

NUT,M10 x 1.25, Cl 8

2шт.

4

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

7

5097158

COLLAR,60mm ID

1шт.

8

98428399

GASKET

1шт.

9

5094825

MUFFLER

1шт.

10

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

11

5095406

SUPPORT

Exhaust Vertical Pipe

1шт.

12

84409237

COLLAR

1шт.
