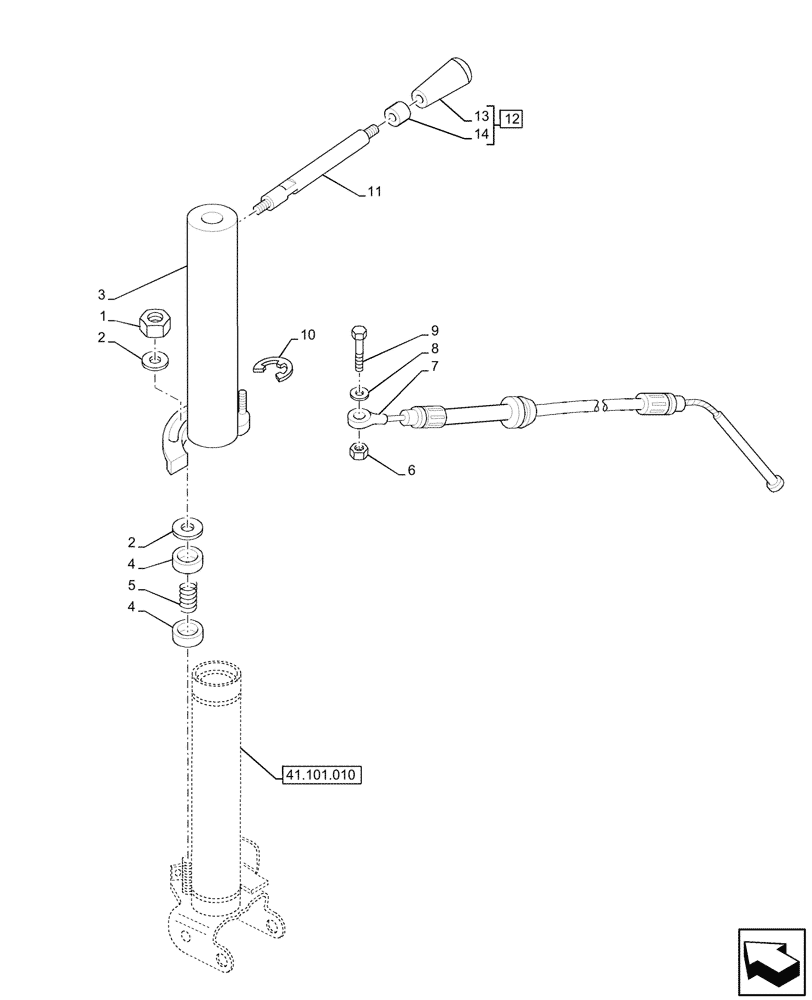

Запчасти Case IH JX95HC PLUS (10.220.010) - STD + VAR - 391102 - THROTTLE CONTROL LINKAGE, LEVER GUIDE (10) - ENGINE

1

16105021

LOCK NUT,M12 x 1.25, Cl 10

1шт.

2

5152998

WASHER,12.5mm ID x 34mm OD x 2mm Thk

2шт.

3

84210100

SUPPORT

Black

1шт.

4

589743

CUP WASHER

2шт.

5

5118181

SPRING

1шт.

6

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

1шт.

7

87557539

CABLE,1502mm L

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

9

10978724

SCREW,M5 x 45mm

1шт.

10

11087676

CIRCLIP,M5

1шт.

11

84210099

LEVER

1шт.

12

5087836

KNOB

ASSY, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Knob, Incl in 12

1шт.

14

5085044

SLEEVE

1шт.
