(10.216.060) - VAR - 335042 - FUEL TANK, AUXILIARY, LINE

Запчасти Case IH JX95HC PLUS (10.216.060) - VAR - 335042 - FUEL TANK, AUXILIARY, LINE (10) - ENGINE

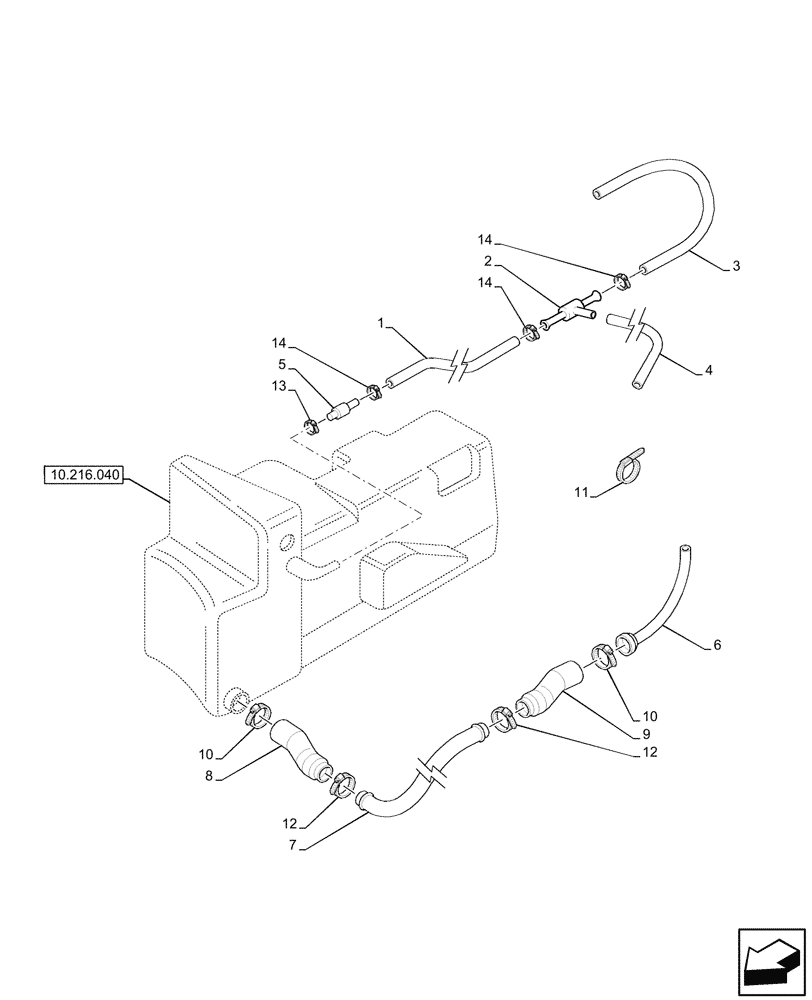

Схема запчастей Case IH JX95HC PLUS - (10.216.060) - VAR - 335042 - FUEL TANK, AUXILIARY, LINE (10) - ENGINE
10
14
6
11
7
14
12
12
14
10.216.040
9
2
5
8
13
4
3
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5096016

HOSE,7mm ID x 2130mm L

Auxiliary Fuel Tank

1шт.

2

87516729

TEE

1шт.

3

5094400

FUEL HOSE

L=300mm

1шт.

4

5090195

FUEL HOSE

L=1000mm

1шт.

5

5094708

HYD CONNECTOR

1шт.

6

5095750

PIPE

Fuel Balance

1шт.

7

5094935

PIPE

Auxiliary Fuel Tank

1шт.

8

5094933

HOSE,38.00 mm ID, 45.00 mm ID x 120.00 mm

Auxiliary Fuel Tank to Cross Over Tube

1шт.

9

5094934

HOSE,38.00 mm ID, 45.00 mm ID x 140.00 mm, SAE J200

Auxiliary Fuel Tank to Cross Over Tube

1шт.

10

5085780

CLAMP

2шт.

11

5112712

COLLAR,M4.8 x 283

2шт.

12

5085778

CLAMP

2шт.

13

5085797

CLAMP

1шт.

14

10186590

CLAMP,11mm - 13mm

5шт.
