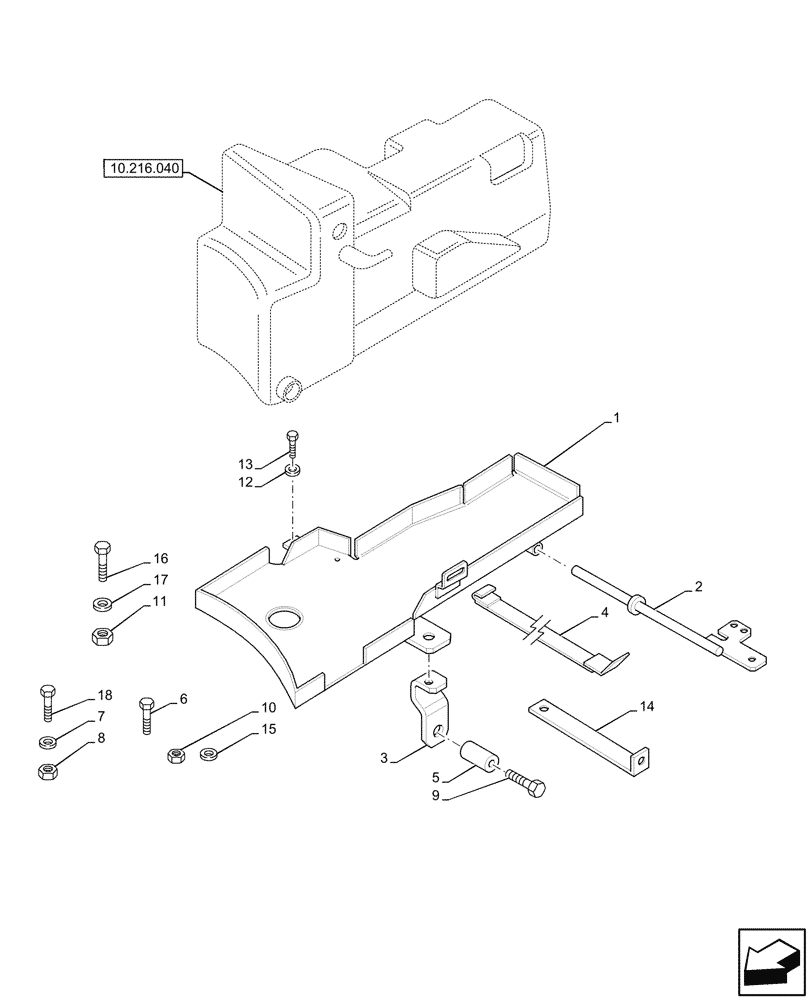

Запчасти Case IH JX95HC PLUS (10.216.050) - VAR - 335042 - FUEL TANK, AUXILIARY, SUPPORT (10) - ENGINE

1

5097757

SUPPORT

Auxiliary Fuel Tank, Bottom, Black

1шт.

2

84368473

SUPPORT

1шт.

3

87747345

SUPPORT

Auxiliary Fuel Tank

1шт.

4

5094937

STRAP

1шт.

5

87626408

SPACER,17mm ID x 30mm OD x 64.4mm L

1шт.

6

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

6

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

2шт.

7

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

1шт.

8

12164711

NUT,M10 x 1.25, Cl 8

2шт.

9

15981624

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

1шт.

10

16105021

LOCK NUT,M12 x 1.25, Cl 10

1шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

12

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

1шт.

13

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

14

87653252

SUPPORT

1шт.

15

12644301

WASHER,M10 x 35 x 3

1шт.

16

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

17

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.
