(10.216.010) - STD + VAR - 334296, 390246 - FUEL TANK, SUPPORT

Запчасти Case IH JX95HC PLUS (10.216.010) - STD + VAR - 334296, 390246 - FUEL TANK, SUPPORT (10) - ENGINE

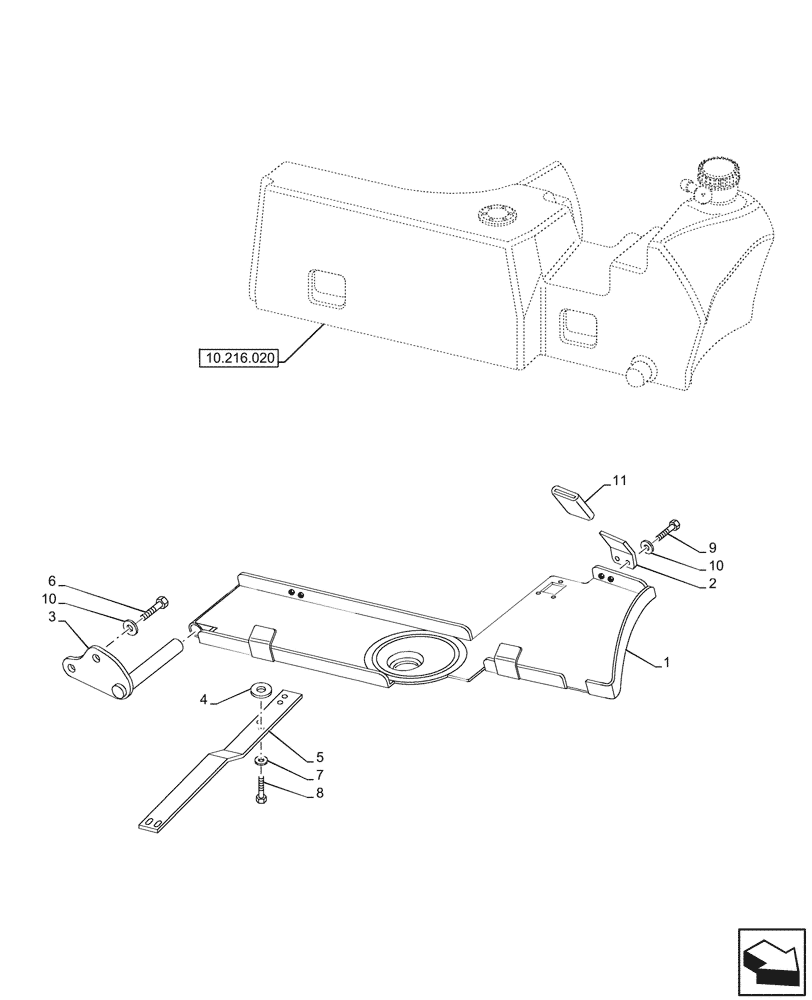

Схема запчастей Case IH JX95HC PLUS - (10.216.010) - STD + VAR - 334296, 390246 - FUEL TANK, SUPPORT (10) - ENGINE
10.216.020
8
3
1
10
4
10
9
6
2
11
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5095516

SUPPORT

Black

1шт.

2

5089670

PLATE

2шт.

3

5095508

SUPPORT

1шт.

4

5090428

WASHER

1шт.

5

5089659

BRACKET

Black

1шт.

6

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

3шт.

8

15980521

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

9

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

10

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

7шт.

11

5092858

RUBBER PAD

4шт.
