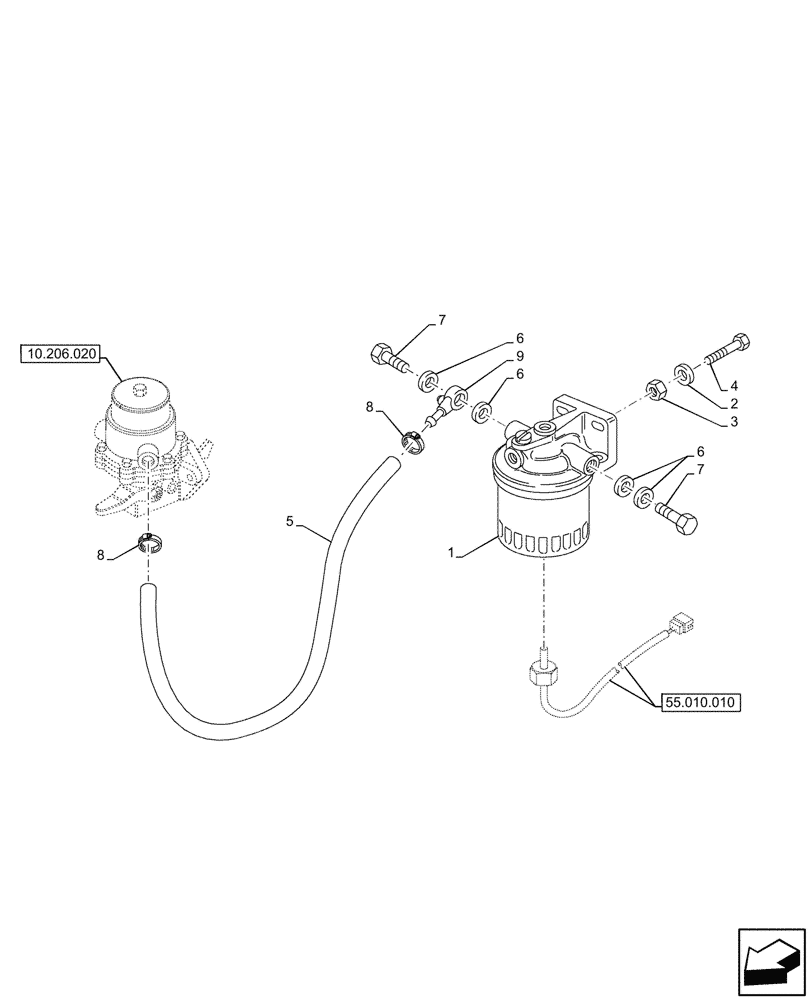

Запчасти Case IH JX95HC PLUS (10.206.010) - VAR - 334296 - FUEL FILTER/WATER SEPARATOR (10) - ENGINE

1

5181823

FUEL FILTER

1шт.

2

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

3

12164711

NUT,M10 x 1.25, Cl 8

2шт.

4

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

5092344

FUEL HOSE,7.00 mm ID x 980.00 mm

Fuel Filter to Fuel Pump

1шт.

6

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

4шт.

7

10184311

BANJO BOLT,M14 x 1.5 x 27mm

2шт.

8

10186590

CLAMP,11mm - 13mm

2шт.

9

5150924

HYD CONNECTOR

2шт.
