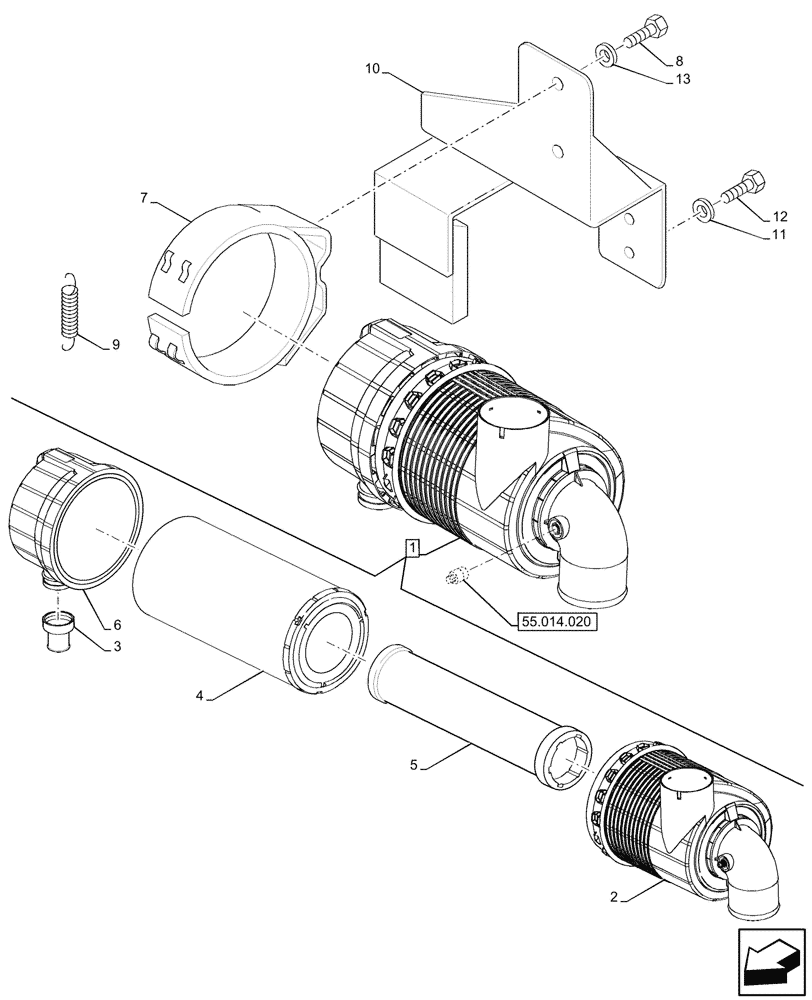

Запчасти Case IH JX95HC PLUS (10.202.030) - VAR - 330200 - AIR CLEANER, W/ DUST EJECTOR (10) - ENGINE

1

47131297

AIR CLEANER

for Ejector, ASSY, Incl 2 - 6

1шт.

2

47132331

Filter Body

1шт.

3

47134169

DRAIN PLUG

Scavenge Adapter

1шт.

4

47132329

Main Element

1шт.

5

47132330

Safety

1шт.

6

47132327

COVER

1шт.

7

84209099

SUPPORT

Air Cleaner

1шт.

8

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

9

5090988

SPRING,12mm OD x 50mm

2шт.

10

84209088

SUPPORT

1шт.

11

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.
