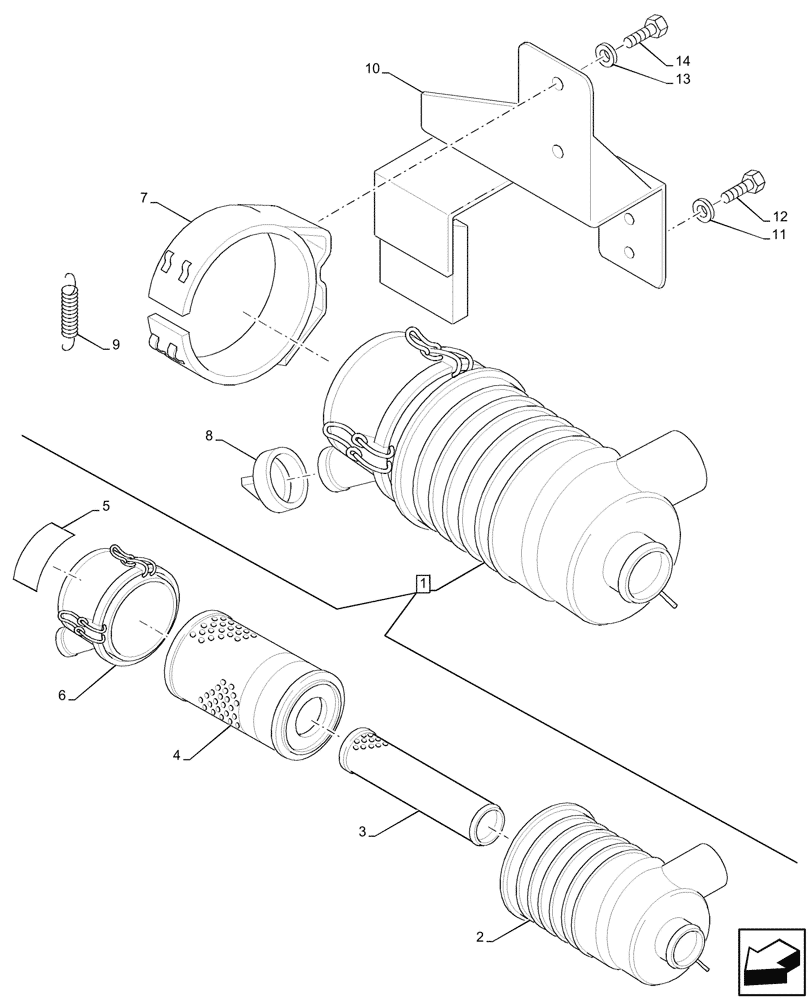

Запчасти Case IH JX95HC PLUS (10.202.010) - STD + VAR - 390227 - AIR CLEANER (10) - ENGINE

1

5097073

AIR CLEANER

ASSY, Incl 2 - 6

1шт.

2

5080446

DUST VALVE

1шт.

3

5080445

ELEMENT

Safety

1шт.

4

47137832

AIR FILTER

Main Element

1шт.

5

5080754

DECAL

1шт.

6

5080447

COVER

1шт.

7

84209099

SUPPORT

Air Cleaner

1шт.

8

5080448

DUST VALVE

1шт.

9

5090988

SPRING,12mm OD x 50mm

2шт.

10

84209088

SUPPORT

1шт.

11

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

14

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.
