(05.100.042[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS

Запчасти Case IH JX95HC PLUS (05.100.042[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE

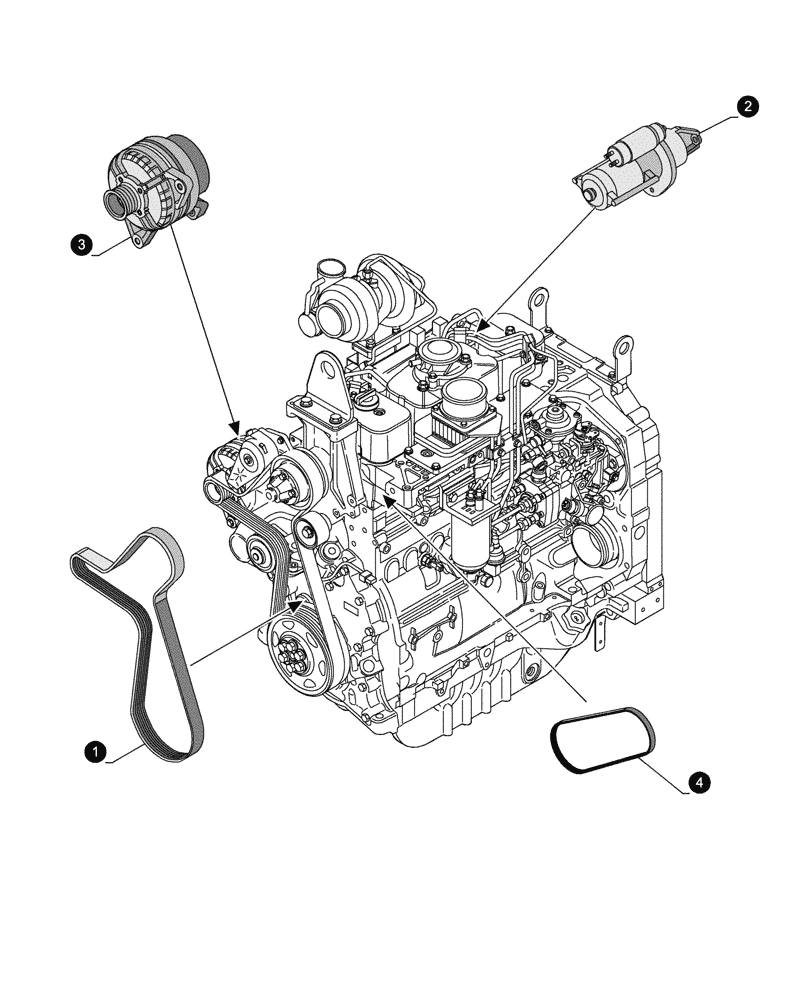

Схема запчастей Case IH JX95HC PLUS - (05.100.042[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

98473706

BELT, TRANSMISSION

1шт.

1

5088081

V-BELT,17mm W x 1150.00mm L, 8 Ribs

2шт.

2

47906044

STARTER MOTOR

12V, 5KW

1шт.

3

47906837

ALTERNATOR

14V, 65A

1шт.

4

5094418

V-BELT,10.00 mm W x 1050.00 mm L

A/C Compressor

1шт.
