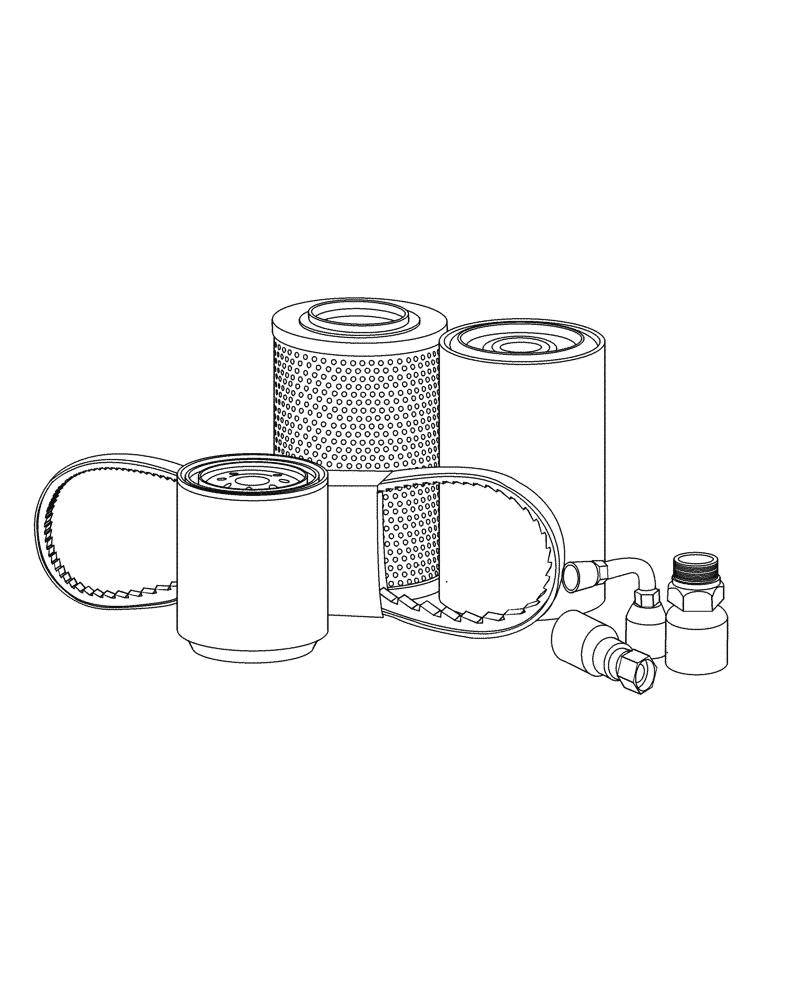

Запчасти Case IH JX95HC PLUS (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

1

84247250

DRY BATTERY

12V 120A Order Ship Direct

1шт.

2

5096755

BRAKE DISC,41mm ID x 165.25mm OD x 4.7mm Thk

1шт.

3

5096702

FUEL GAUGE

On Tank

1шт.

4

82009352

FILLER CAP

On Tank

1шт.

5

5083101

RADIATOR HOSE

Inlet Hose

1шт.

6

84175932

RADIATOR HOSE,38.00 mm ID, 45.00 mm ID x 136.00 mm

Inlet Hose

1шт.

7

4999682

RADIATOR CAP,Vented

On Radiator

1шт.

8

4274034

CAP

Cylinder End, Supply tank

1шт.

9

98463637

THERMOSTAT

1шт.

10

504062682

SENDER UNIT

1шт.

11

504088112

SENDER UNIT

Water Temperatur Switch

1шт.

12

5155859

THERMOSTART

12V (CAV)

1шт.

13

47906044

STARTER MOTOR

12V, 5KW

1шт.

14

47134050

DIPSTICK

Oil Level

1шт.

15

87341173

SEAL KIT

On Steering Cylinder

1шт.

16

84287239

SEAL KIT

On Remote Valve

1шт.

17

84285436

SEAL KIT

On Remote Valve

1шт.

18

5080460

SEAL KIT

On Remote Valve

1шт.

19

84330658

SENSOR

Water In Fuel

1шт.

20

84154837

SENSOR

Water In Fuel

1шт.

21

5086006

SWITCH

Thermostat Heater Switch

1шт.

22

47813872

NEUTRAL START SWITCH

Safety Switch 35A

1шт.

23

47813864

NEUTRAL START SWITCH

1шт.

24

5094131

WINDSHIELD WIPER SWI

Front/Rear Wiper Spray Switch

1шт.

25

47514670

SWITCH

Rocker, Front Work Lamp

1шт.

26

87551489

LIGHT SWITCH

On/Off Rear Work Lamp

1шт.

27

5089430

WINDSHIELD WASHER SW

Front Wiper Spray Switch

1шт.

28

5089431

WINDSHIELD WIPER SWI

1шт.

29

87702928

PUSH BUTTON SWITCH

Hand Brake Switch

1шт.

30

84155394

FLASHER SWITCH

Rocker, Hazard

1шт.

31

5122659

FLASHER SWITCH

For Emergency

1шт.

32

82036587

PRESSURE SWITCH

Oil Pressure Sensor

1шт.

33

87584696

PRESSURE SWITCH

Brake Switch

1шт.

34

47654155

PRESSURE SWITCH

Steering Circuit Sensor

1шт.

35

82036587

PRESSURE SWITCH

Oil Pressure

1шт.

36

47132449

SWITCH

Brake Switch, Snap Action

1шт.

37

1102258

H3 12V 55W

BULB,H3, 12V, 55W

1шт.

38

5080612

BULB,12V, 5/21W

Rear Stop Lamp

1шт.

39

5080613

BULB,P21W, 12V, 21W

Rear Stop Lamp

1шт.

40

5080705

BULB,12V, 5W

1шт.

41

14152090

BULB,H4, 12V, 60/55W

1шт.

42

5080366

RELAY,12V, 30A

1шт.

43

5086055

RELAY,12V

1шт.

44

5080380

RELAY,12V, 30A

1шт.

45

11054890

FUSE,7.5 Amp, Type A

1шт.

46

11054990

FUSE,10 Amp, Type A

1шт.

47

11055090

FUSE,15 Amp, Type A

1шт.

48

11055190

FUSE,20 Amp, Type A

1шт.

49

11055390

FUSE,30A, Blade/Uni

30A

1шт.

50

84157159

FUSE,40A, Maxi, Orange

1шт.

51

10404290

FUSE

80AMP White

1шт.

52

5080122

FUSE,40A, Strip

1шт.

53

5092198

COUPLING, QUICK, FEM,Light Blue

1шт.

54

5091860

COUPLING, QUICK, FEM,Green

1шт.

55

5092199

COUPLING, QUICK, FEM,Brown

1шт.

56

5093853

COUPLING, QUICK, FEM,Black

1шт.

57

5083120

FLASHER LAMP

11-15V

1шт.

58

4031577

SEAL,10mm Thk

Front Oil Pan Gasket

1шт.

59

4600753

SEAL

Rear Oil Pan Gasket

1шт.

60

47906837

ALTERNATOR

14V, 85A

1шт.
