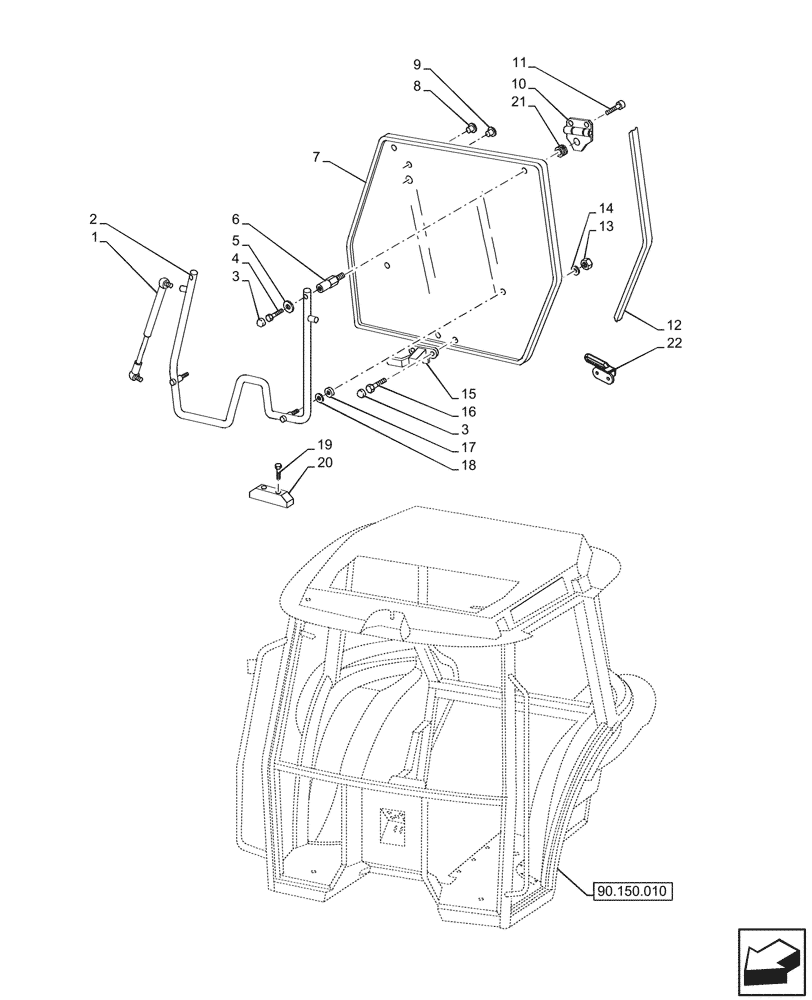

Запчасти Case IH JX95HC PLUS (90.156.020) - STD + VAR - 391606 - CAB, REAR, WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84198394

GAS STRUT,270mm Extended, 195mm Compressed

1шт.

2

5089566

SUPPORT

1шт.

3

5089481

CAP,17mm OD

8шт.

4

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

5

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

M8 Bolt Size x 16mm OD x 1.9mm Thk

6шт.

6

5092902

BOLT

2шт.

7

5089562

CAB GLASS

1шт.

8

5094373

PLUG

1шт.

9

5094071

PLUG

1шт.

10

5089565

HINGE

2шт.

11

15672601

SCREW,M8 x 16mm

M8 x 16mm

4шт.

12

87679906

SEAL,3715.77mm L

1шт.

13

5094141

NUT,Spheric, M8

8шт.

14

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

8шт.

15

5095078

HANDLE

1шт.

16

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

17

5094375

WASHER,8mm ID x 32.2mm OD x 3.9mm Thk

6шт.

18

5094376

WASHER,9.2mm ID x 28.3mm OD x 1mm Thk

2шт.

19

15931414

SCREW

2шт.

20

5094377

BRACKET

1шт.

21

87602808

GROMMET

2шт.

22

5089564

HANDLE

1шт.
