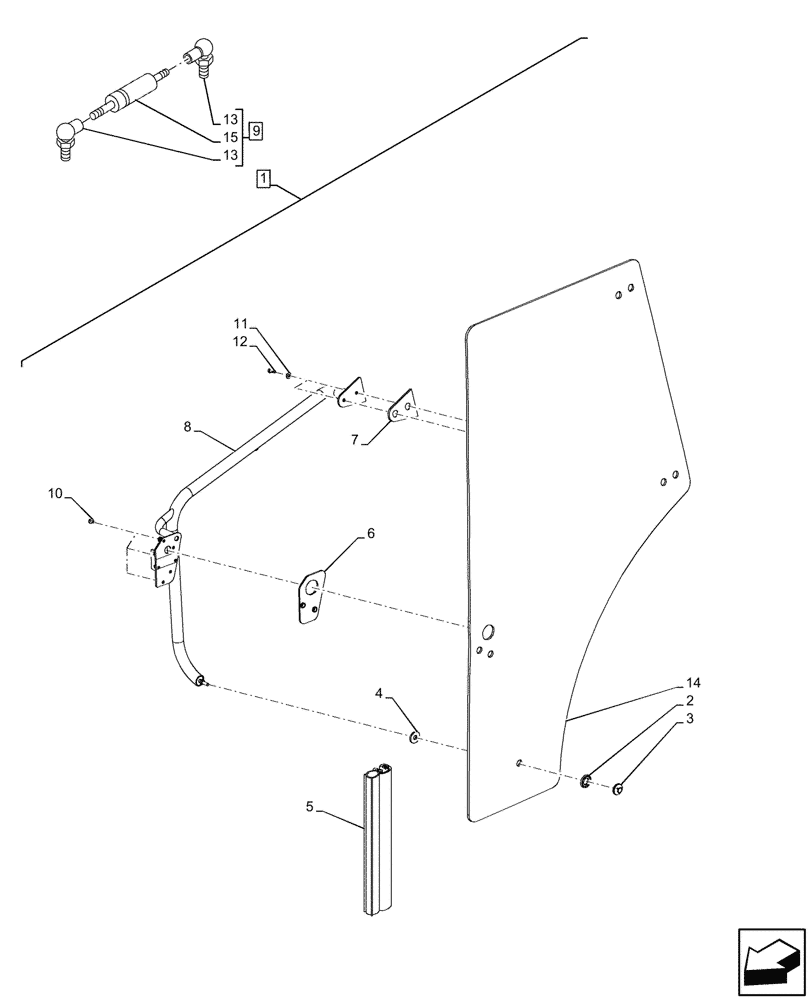

Запчасти Case IH JX95HC PLUS (90.154.010) - STD + VAR - 391606 - CAB DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87620483

RH CAB DOOR

ASSY, Incl 2 - 8, 11, 14

1шт.

1

87620484

LH CAB DOOR

ASSY, Incl 4 (Qty 2), 5 (Qty 2), 6 (Qty 1), 7 (Qty 1), 8, 9 (Qty 1), 10, 16 - 18, 21 (Qty 4), 22, 24 (Qty 1)

1шт.

2

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

1шт.

3

5094141

NUT,Spheric, M8

1шт.

4

5080558

SEALING WASHER

1шт.

5

87679905

SEAL,4267.09mm L

1шт.

6

87620482

RUBBER PAD,RH

1шт.

6

5098750

RUBBER PAD,LH

1шт.

7

87620476

RUBBER PAD

2шт.

8

87620242

ARM

RH

1шт.

8

87620247

ARM

1шт.

9

84168525

GAS STRUT

ASSY, Incl 13, 15

1шт.

10

14778711

SCREW,Cross Rec Cheese Hd, M6 x 10mm, Cl 5.8

3шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

13

87666155

BALL JOINT

1шт.

14

87620223

CAB GLASS ASSY

RH

1шт.

14

87620234

CAB GLASS ASSY

LH

1шт.

15

NSS

NOT SOLD SEPARAT

Gas Strut, Incl in 9

1шт.
