(90.151.030) - STD + VAR - 391606 - TRAILER BRAKE, LEVER, SUPPORT

Запчасти Case IH JX95HC PLUS (90.151.030) - STD + VAR - 391606 - TRAILER BRAKE, LEVER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

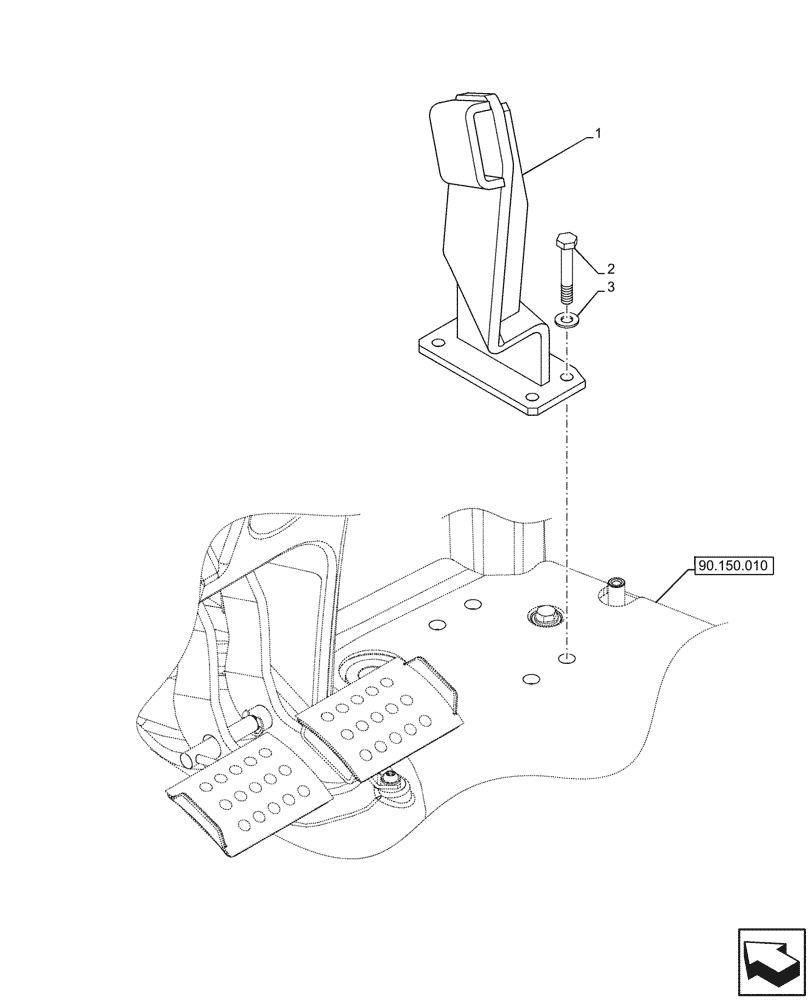

Схема запчастей Case IH JX95HC PLUS - (90.151.030) - STD + VAR - 391606 - TRAILER BRAKE, LEVER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.010
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84524362

SUPPORT

1шт.

2

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

Hex, M8.00 x 1.25 x 14.00, Cl 8.8, Full Thd

4шт.

3

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

M8.00 Size x 22.00 OD x 1.50mm

4шт.

Выбрано товаров: 3
