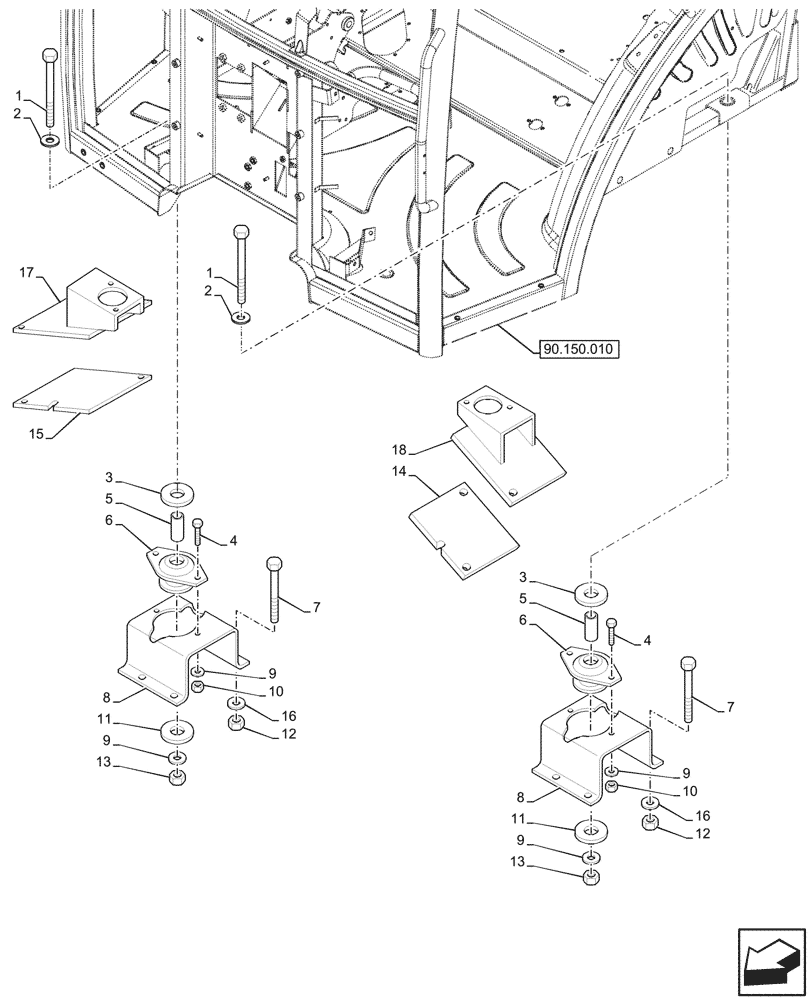

Запчасти Case IH JX95HC PLUS (90.150.060) - STD + VAR - 391606 - CAB, SUPPORT, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

15864321

BOLT,Hex, M16 x 1.5 x 130mm, Cl 8.8

2шт.

2

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

2шт.

3

5092191

SPACER,17mm ID x 90mm OD x 4mm L

2шт.

4

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

5

5132014

SPACER,17mm ID x 24mm OD x 57mm L

2шт.

6

5132016

ISOLATOR

2шт.

7

5094564

BOLT

4шт.

8

5098775

SUPPORT

2шт.

9

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

8шт.

10

12164711

NUT,M10 x 1.25, Cl 8

8шт.

11

5092190

SPACER,17mm ID x 90mm OD x 8mm L

2шт.

12

10721021

NUT,M18 x 1.5, Cl 10

4шт.

13

12164121

NUT,M16 x 1.5, Cl 10

2шт.

14

5095905

PLATE

LH, Black

1шт.

15

5095906

PLATE

RH, Black

1шт.

16

12601874

SPRING WASHER,19mm ID x 34mm OD x 1.6mm Thk

4шт.
