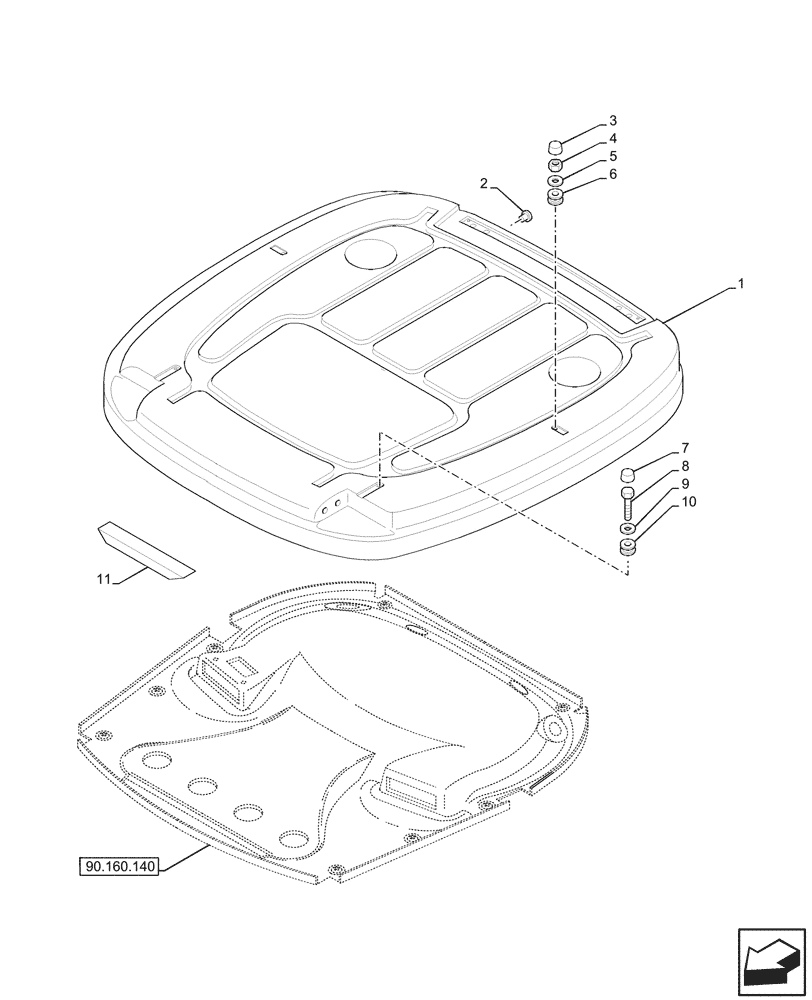

Запчасти Case IH JX95HC PLUS (90.150.030) - STD + VAR - 391606 - CAB ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5094378

ROOF

Red

1шт.

2

5094080

PLUG

2шт.

3

5094207

PLUG

2шт.

4

12574711

NUT,M12 x 1.5, Cl 8

2шт.

5

5092922

WASHER

2шт.

6

84583466

GASKET,12mm ID x 32mm OD x 10mm Thk

2шт.

7

5089481

CAP,17mm OD

4шт.

8

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

10

5094130

SEAL

2шт.

11

87528106

RUBBER SEAL

1шт.
