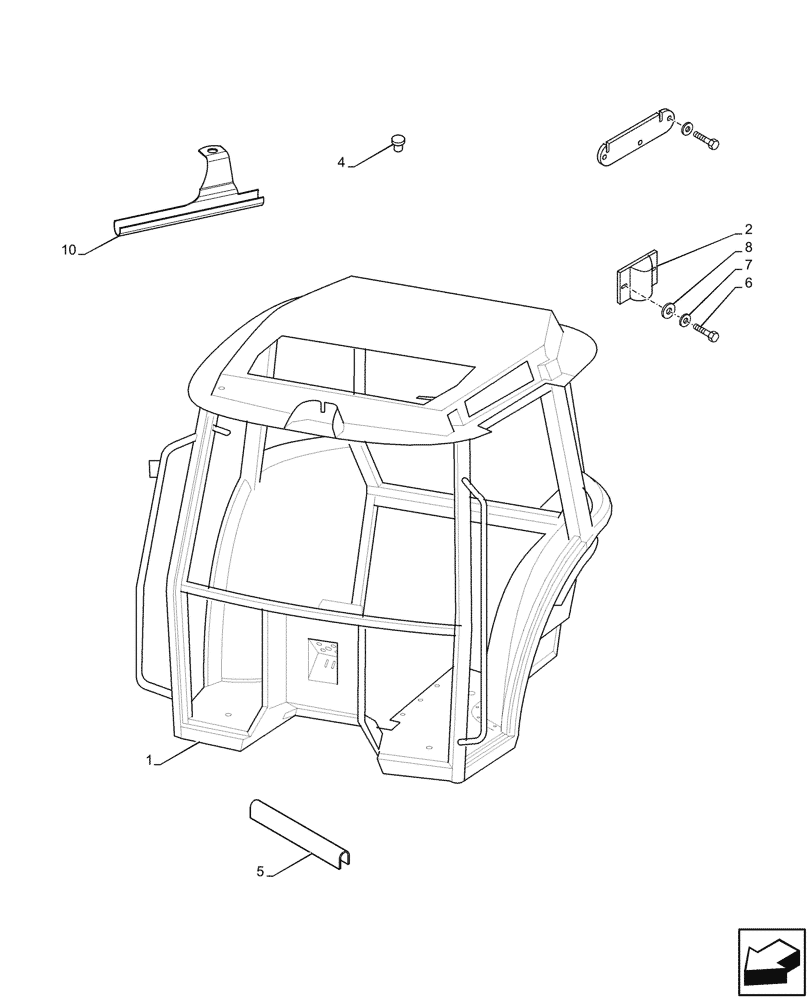

Запчасти Case IH JX95HC PLUS (90.150.010) - STD + VAR - 391606 - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84251716

CAB FRAME

Black

1шт.

2

5094127

PLUG

2шт.

3

5094771

COVER

1шт.

4

5097512

PLUG

1шт.

5

5096094

SEAL,100mm L

L=100mm, PVC, Black

2шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

7

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

4шт.

8

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

4шт.

9

14072411

BOLT,Cross Thin Cheese Hd, M5 x 16mm

3шт.

10

84236289

GUARD

LH

1шт.

11

84236287

GUARD

RH

1шт.
