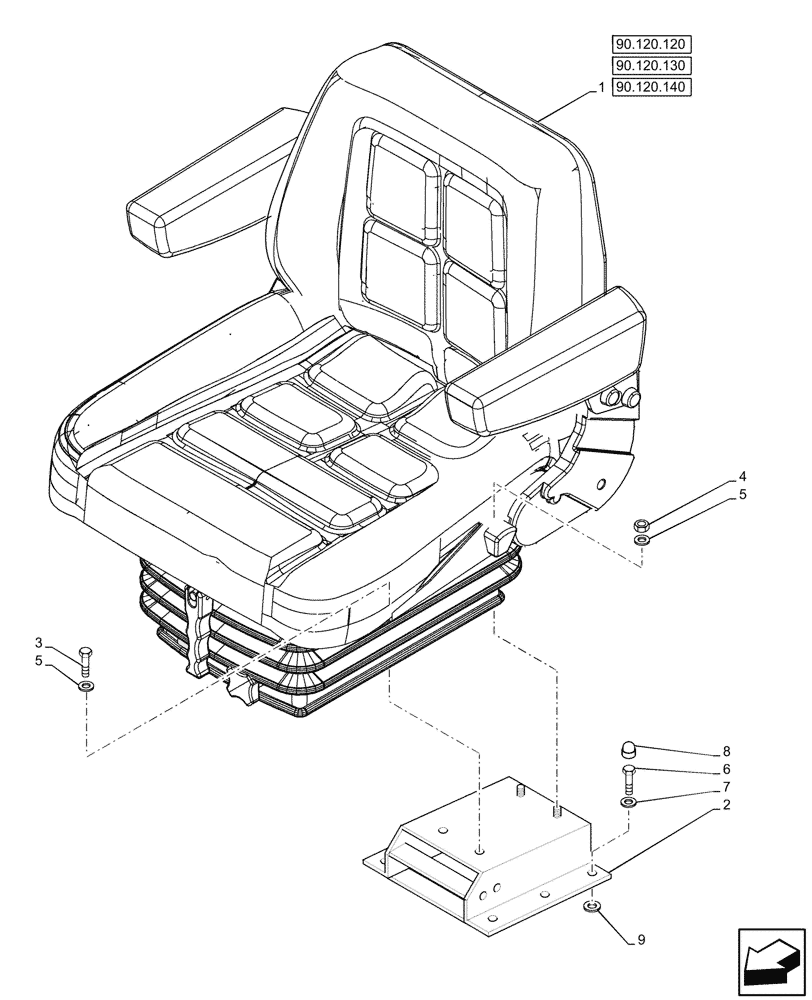

Запчасти Case IH JX95HC PLUS (90.120.110) - VAR - 336191 - DRIVER SEAT, DELUXE, W/ RETRACTABLE BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5091998

DRIVER SEAT

Fabric, Deluxe, w/ Retractable Seat Belt, ASSY

1шт.

2

5093531

SUPPORT

Driver Seat, Black

1шт.

3

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

12164711

NUT,M10 x 1.25, Cl 8

2шт.

5

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

8

5089481

CAP,17mm OD

6шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.
