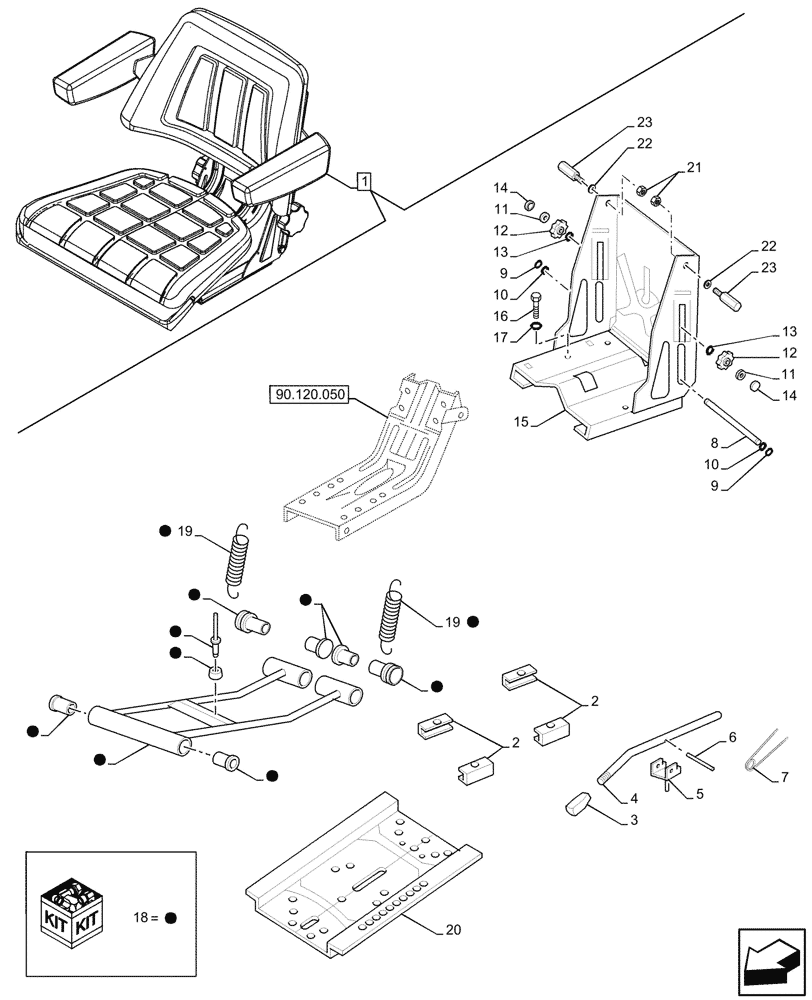

Запчасти Case IH JX95HC PLUS (90.120.060) - STD + VAR - 391241 - DRIVER SEAT, W/ ARMREST, W/O SEAT BELT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87391066

DRIVER SEAT

ASSY, Incl 2 - 23

1шт.

See Driver seat Components also in Figure 90.120.050

1шт.

2

5080282

U-BRACKET

4шт.

3

5080283

KNOB

1шт.

4

5080284

HANDLE

1шт.

5

5080285

SUPPORT

1шт.

6

5080286

PIN

1шт.

7

5080287

SPRING

1шт.

8

5080288

ROD

1шт.

9

5080289

RING

2шт.

10

5080290

WASHER

2шт.

11

5080236

NUT

2шт.

12

5080291

KNOB

2шт.

13

5080292

WASHER

2шт.

14

5080419

COVER

1шт.

15

5080758

FRAME

1шт.

16

5080294

BOLT

2шт.

17

5080248

SPRING WASHER

2шт.

18

5083209

KIT

ASSY, Incl 19

1шт.

19

5080763

SPRING

Height Adjusting

2шт.

20

5080281

PLATE

1шт.

21

5080762

NUT

2шт.

22

5080761

WASHER

2шт.

23

5080759

PIN

2шт.
