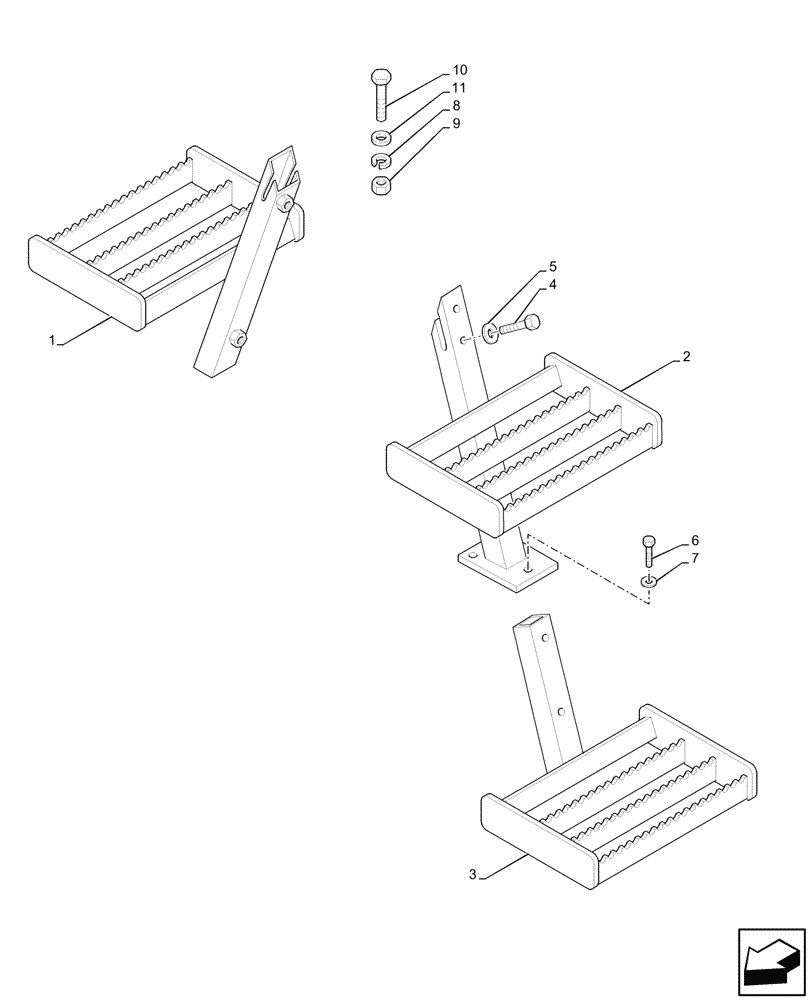

Запчасти Case IH JX95HC PLUS (90.118.020) - STD + VAR - 391606 - SMALL, LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87722273

STEP

1шт.

2

5089941

STEP

1шт.

3

5098035

STEP

2шт.

4

15541021

SCREW,Hex, M12 x 1.25 x 60mm, Cl 8.8

Hex, M12 x 1.25 x 60mm, Cl 8.8

4шт.

5

12601574

WAVE WASHER,Wave, M13

Wave, M13 8 x 12

4шт.

6

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

8

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

9

10790111

NUT,M10 x 1.25, Cl 8

M10 x 1.25, Cl 8

1шт.

10

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

11

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10.5mm ID x 21mm OD x 2mm Thk

1шт.
