(90.102.010) - VAR - 337836 - ENGINE, FAN GUARD

Запчасти Case IH JX95HC PLUS (90.102.010) - VAR - 337836 - ENGINE, FAN GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

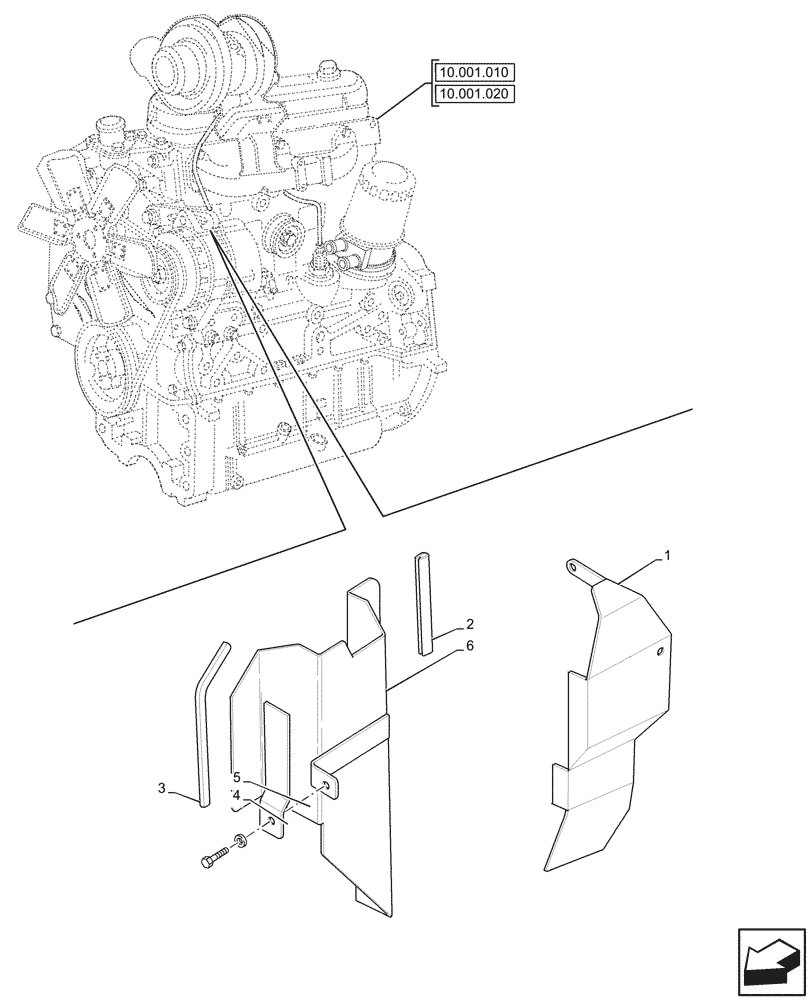

Схема запчастей Case IH JX95HC PLUS - (90.102.010) - VAR - 337836 - ENGINE, FAN GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
2
5
1
10.001.020
6
10.001.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84164129

GUARD

LH

1шт.

2

5093851

SEAL,220mm L

1шт.

3

5093852

RUBBER SEAL,170mm L

1шт.

4

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

5

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

6

84164133

GUARD

RH

1шт.

Выбрано товаров: 6
