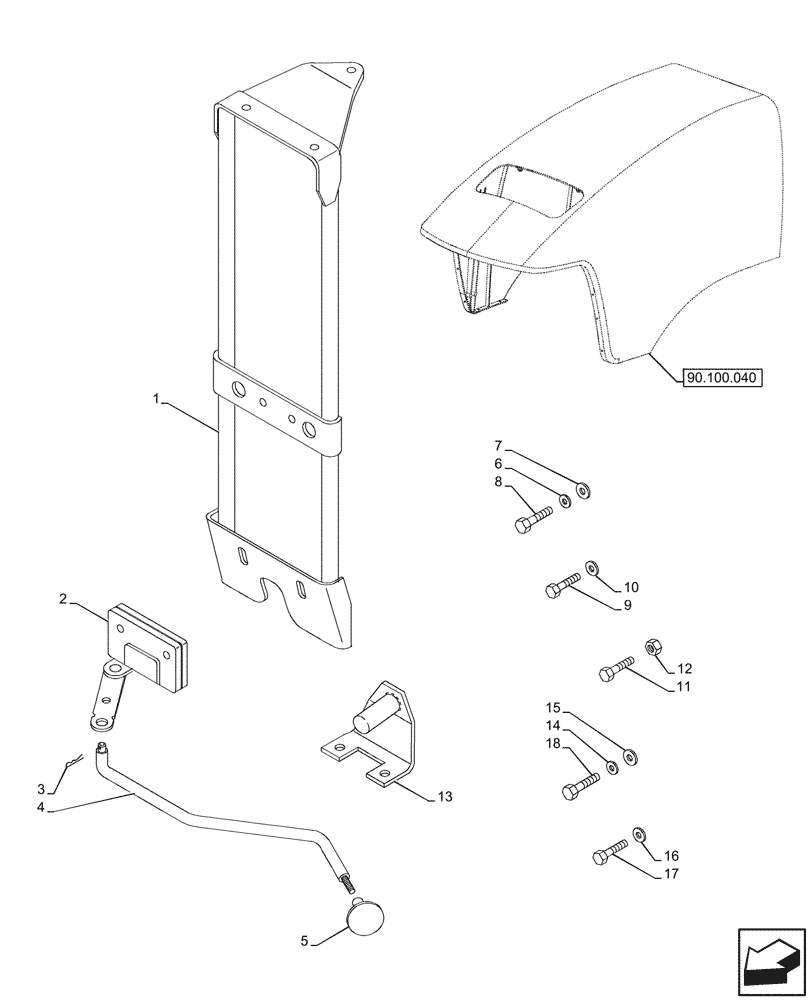

Запчасти Case IH JX95HC PLUS (90.100.050) - STD + VAR - 391606 - HOOD, LOCK, KNOB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5097501

SUPPORT

Black

1шт.

2

84303435

LATCH

1шт.

3

10734201

COTTER PIN,M2 x 12

1шт.

4

5097513

ROD

1шт.

5

47056191

PUSH BUTTON

1шт.

6

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

5шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

8

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

10

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

11

10923121

SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

12

10790111

NUT,M10 x 1.25, Cl 8

1шт.

13

5096768

SUPPORT

1шт.

14

12601074

WAVE WASHER,4.30mm ID x 9mm OD x 0.50mm, 2mm Max, CST, DAC

10шт.

15

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

18

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

2шт.
