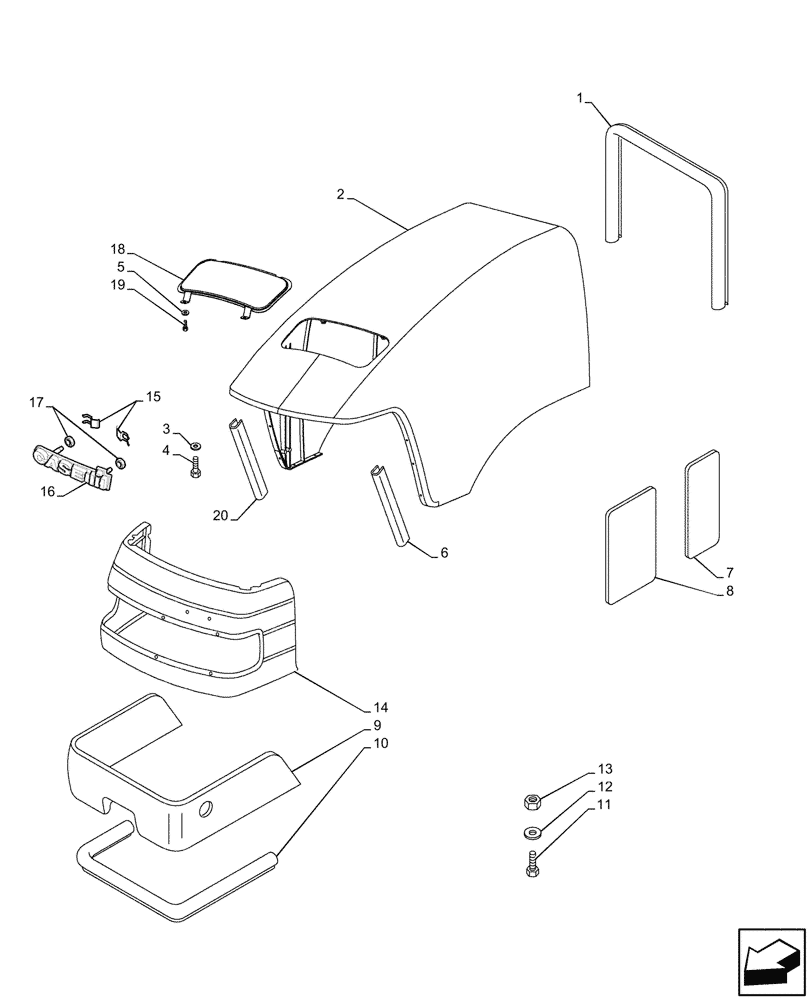

Запчасти Case IH JX95HC PLUS (90.100.040) - STD + VAR - 391606 - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5092202

RUBBER SEAL,1540mm L

L=1540mm

1шт.

2

84347164

ENGINE HOOD PANEL

Red

1шт.

3

12601074

WAVE WASHER,4.30mm ID x 9mm OD x 0.50mm, 2mm Max, CST, DAC

8шт.

4

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

8шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

5093852

RUBBER SEAL,170mm L

L=170mm

1шт.

7

84415090

ISOLATOR

1шт.

8

84415089

ISOLATOR

2шт.

9

5097719

BEZEL

1шт.

10

5092201

RUBBER SEAL,1210mm L

L=1210mm

2шт.

11

10444711

SCREW,Hex, M4 x 14mm, Cl 5.8, Full Thd

12шт.

12

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

30шт.

13

10794011

NUT,M4, Cl 8

8шт.

14

87730668

GRILLE

1шт.

15

47126667

SPRING CLIP

2шт.

16

87564049

EMBLEM

1шт.

17

5138360

RING,4mm ID x 12mm OD x 3mm Thk

2шт.

18

84313527

GRILLE

1шт.

19

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

20

87496881

SEAL,120mm L

L=120mm

1шт.
