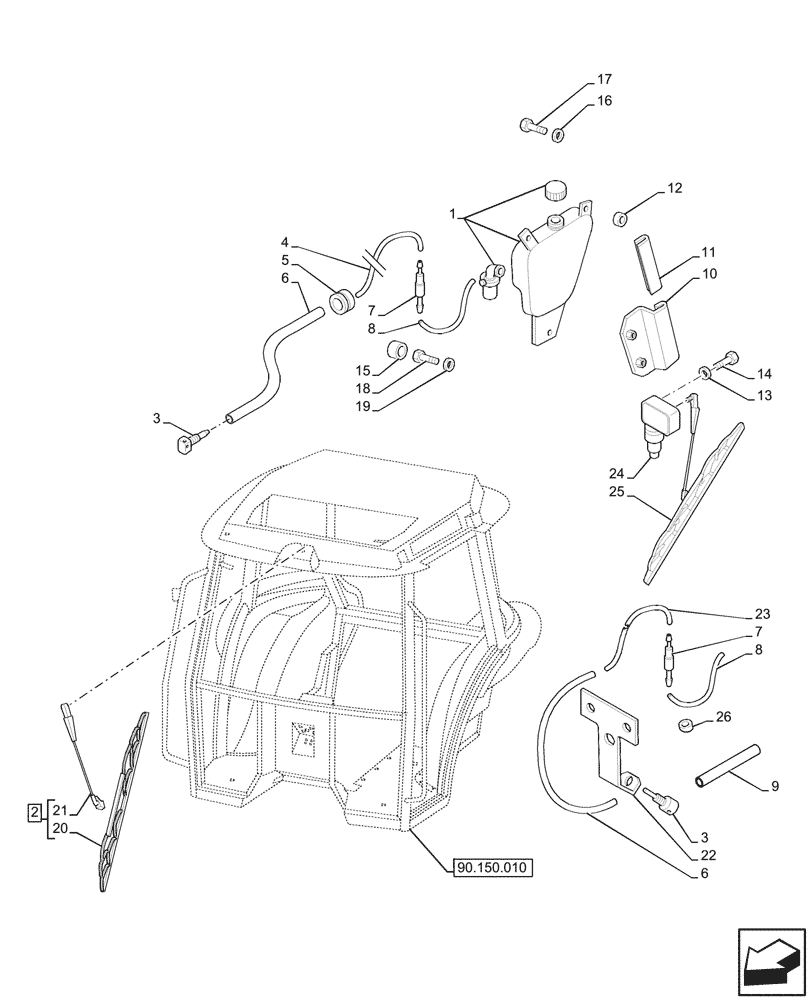

Запчасти Case IH JX95HC PLUS (55.518.040) - VAR - 334402 - CAB, WINDSHIELD WASHER , WIPER MOTOR, REAR (55) - ELECTRICAL SYSTEMS

1

47792934

RESERVOIR, WINDSHIEL

1шт.

2

5092905

WIPER ARM

1шт.

3

5092907

NOZZLE

2шт.

4

5092908

TUBE

1шт.

5

5092913

GROMMET

1шт.

6

5094134

HOSE,25mm ID x 165mm L

4шт.

7

5092910

FITTING

2шт.

8

5092909

HOSE,4mm ID x 200mm L

2шт.

9

5094133

FLEXIBLE SHEATH

1шт.

10

5094175

SUPPORT

1шт.

11

5094138

RUBBER SEAL,171mm L

1шт.

12

5093041

RUBBER BUSHING,9mm ID x 20mm OD x 6.8mm L

2шт.

13

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

14

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

15

5089481

CAP,17mm OD

2шт.

16

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

17

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

19

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

20

87754206

WIPER BLADE

1шт.

21

87754207

WIPER ARM

1шт.

22

5094345

SUPPORT

1шт.

23

5093390

HOSE,4mm ID x 3320mm L

1шт.

24

5093388

WIPER MOTOR,12V

1шт.

25

5093389

KIT

1шт.

26

47876869

SUPPORT

1шт.

26

47792932

SUPPORT

1шт.
