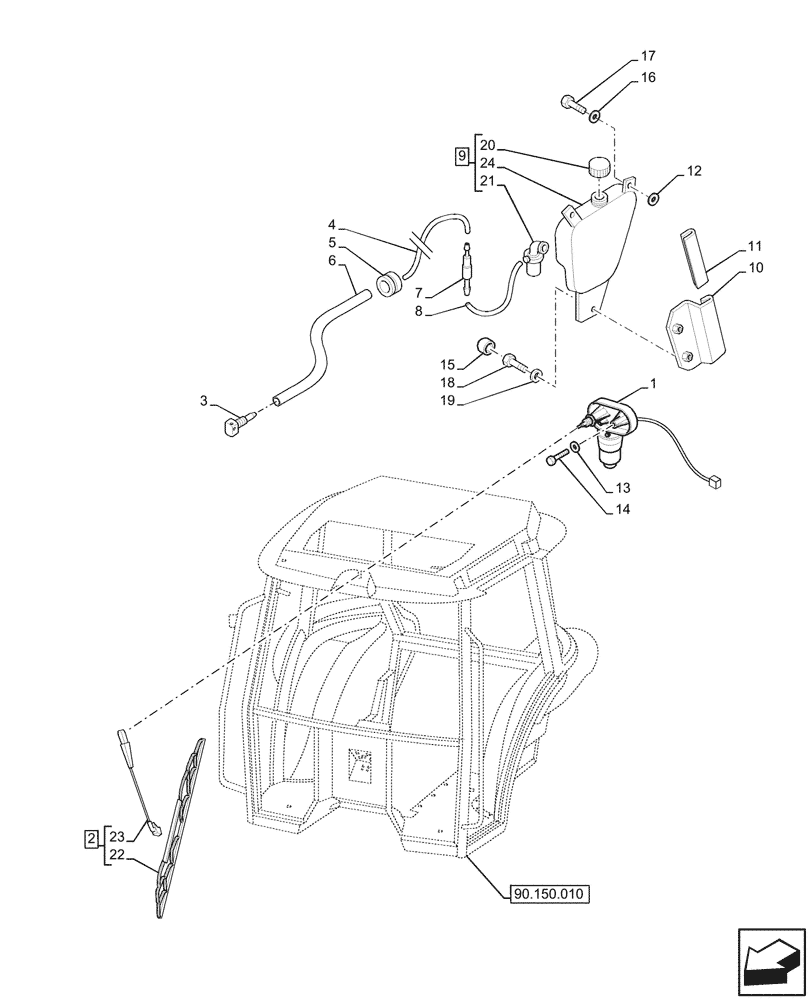

Запчасти Case IH JX95HC PLUS (55.518.020) - STD + VAR - 334399 - CAB, WINDSHIELD WIPER, WIPER MOTOR, FRONT (55) - ELECTRICAL SYSTEMS

1

87474388

WIPER MOTOR

1шт.

2

5092905

WIPER ARM

Windshield, ASSY, Incl 22, 23

1шт.

3

5092907

NOZZLE

Wiper Spray

1шт.

4

5092908

TUBE

1шт.

5

5092913

GROMMET

1шт.

6

5094134

HOSE,25mm ID x 165mm L

2шт.

7

5092910

FITTING

1шт.

8

5092909

HOSE,4mm ID x 200mm L

1шт.

9

84480061

RESERVOIR, WINDSHIEL

Wiper, ASSY, Incl 20, 21, 24

1шт.

10

5094175

SUPPORT

Wiper Tank

1шт.

11

5094138

RUBBER SEAL,171mm L

1шт.

12

5093041

RUBBER BUSHING,9mm ID x 20mm OD x 6.8mm L

2шт.

13

10571579

LOCK WASHER,M6

1шт.

14

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

15

5089481

CAP,17mm OD

2шт.

16

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

17

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

19

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

20

47626343

CAP

1шт.

21

87309569

PUMP

Wiper Tank

1шт.

22

87754206

WIPER BLADE

1шт.

23

87754207

WIPER ARM

1шт.

24

NSS

NOT SOLD SEPARAT

Reservoir Tank, Incl in 9

1шт.
