(55.512.030) - VAR - 330777 - RADIO, COVER, SPEAKER, ANTENNA

Запчасти Case IH JX95HC PLUS (55.512.030) - VAR - 330777 - RADIO, COVER, SPEAKER, ANTENNA (55) - ELECTRICAL SYSTEMS

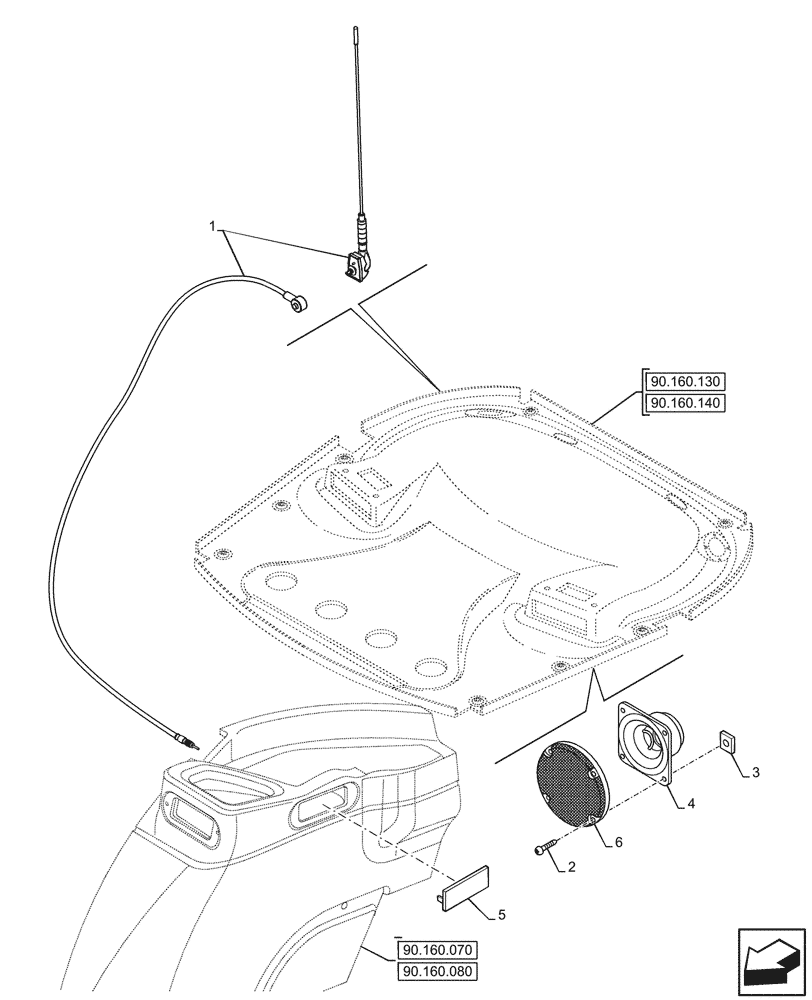

Схема запчастей Case IH JX95HC PLUS - (55.512.030) - VAR - 330777 - RADIO, COVER, SPEAKER, ANTENNA (55) - ELECTRICAL SYSTEMS
90.160.140
6
3
90.160.130
90.160.080
1
90.160.070
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87519490

ANTENNA

Radio

1шт.

2

15909407

SELF-TAP SCREW,Pozidriv Oval Hd, M3.5 x 1.3 x 19mm

8шт.

3

14226690

SQUARE NUT

8шт.

4

84584598

SPEAKER

2шт.

5

82008353

PLATE

1шт.

6

5089509

COVER

Speaker

2шт.

Выбрано товаров: 6
