(55.404.090) - STD + VAR - 391606 - CAB ROOF, WORK LAMP, REAR, SUPPORT

Запчасти Case IH JX95HC PLUS (55.404.090) - STD + VAR - 391606 - CAB ROOF, WORK LAMP, REAR, SUPPORT (55) - ELECTRICAL SYSTEMS

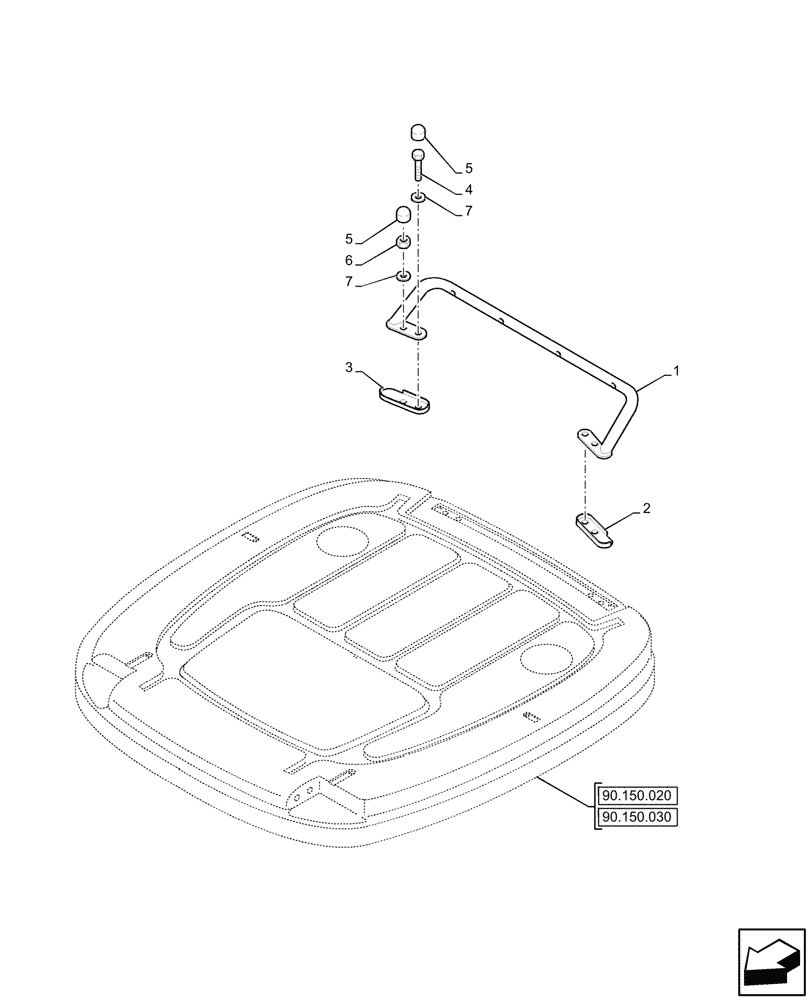

Схема запчастей Case IH JX95HC PLUS - (55.404.090) - STD + VAR - 391606 - CAB ROOF, WORK LAMP, REAR, SUPPORT (55) - ELECTRICAL SYSTEMS
7
7
90.150.030
90.150.020
1
5
5
3
2
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5089502

SUPPORT

Rear Work Lamp

1шт.

2

5092923

SEAL

LH

1шт.

3

5094124

SEAL

RH

1шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

5089481

CAP,17mm OD

4шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 7
