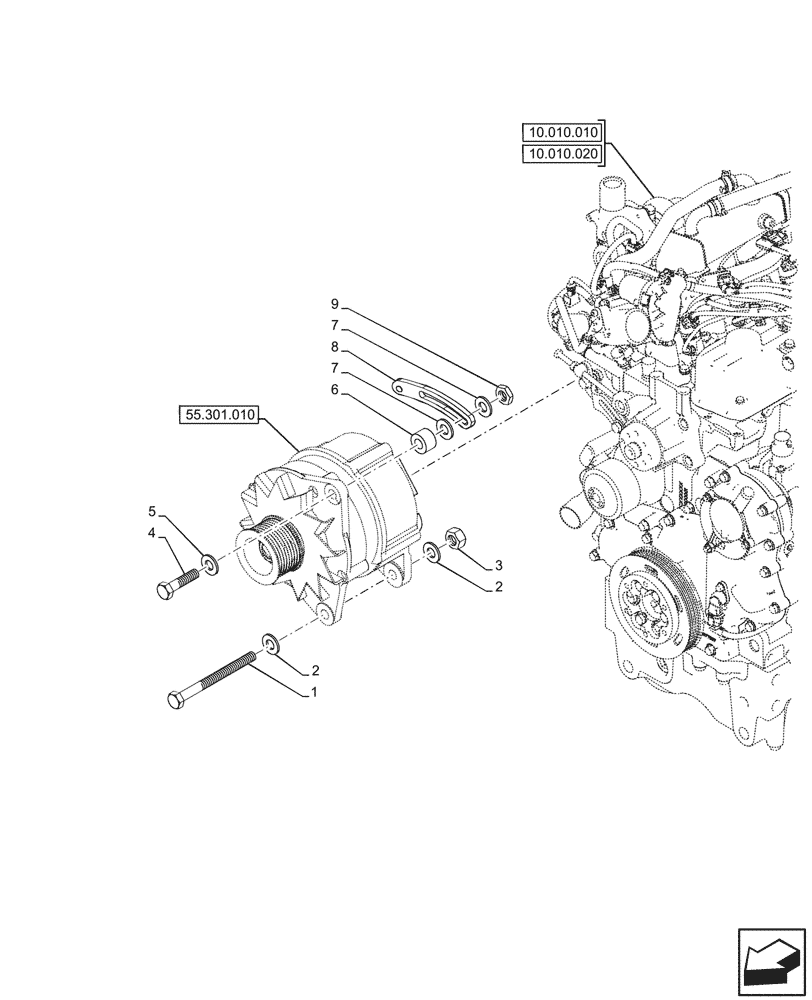

Запчасти Case IH JX95HC PLUS (55.301.020) - STD + VAR - 391102 - ALTERNATOR, BELT, PLATE (55) - ELECTRICAL SYSTEMS

1

15541921

BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8

1шт.

2

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

2шт.

3

16105021

LOCK NUT,M12 x 1.25, Cl 10

1шт.

4

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

6

5085904

SPACER,10.3mm ID x 20mm OD x 9mm L

1шт.

7

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

2шт.

8

47515473

SUPPORT

1шт.

9

12164711

NUT,M10 x 1.25, Cl 8

1шт.
