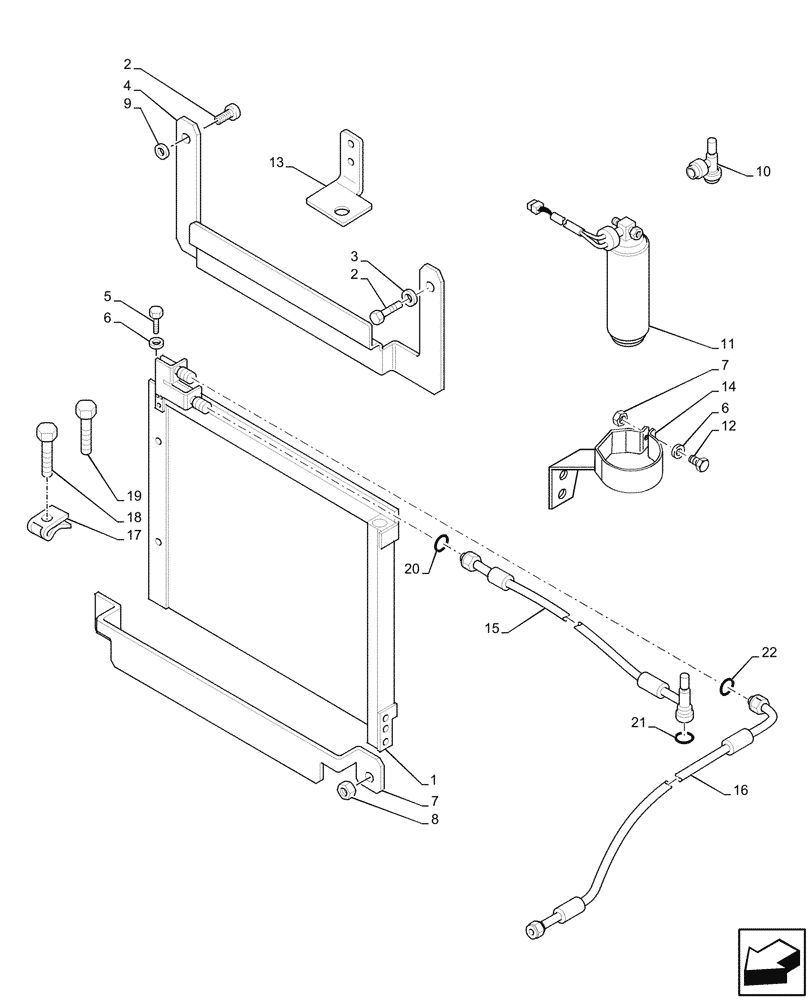

Запчасти Case IH JX95HC PLUS (50.200.030) - VAR - 330641 - AIR CONDITIONING, CONDENSER (50) - CAB CLIMATE CONTROL

1

84342887

CONDENSER

1шт.

2

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

3

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

Wave, 10.50mm ID x 21.00mm OD x0.80mm, 3.00mm, CST, DAC

2шт.

4

84359949

SUPPORT

1шт.

5

14781811

SELF-TAP SCREW,Cross Rec Cheese Hd, M8 x 18mm, Cl 5.8

2шт.

6

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

3шт.

7

15896211

NUT,M6, Cl 8

M6, Cl 8

3шт.

8

84359948

SUPPORT

1шт.

9

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

Wave, 8.40mm ID x 15.00mm OD x0.80mm, 3.00mm, CST, DAC

3шт.

10

5092979

TEE

1шт.

11

5165615

RECEIVER-DRYER

1шт.

12

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

Hex, M6 x 25mm, Cl 8.8

1шт.

13

84359950

SUPPORT

1шт.

14

5091898

BRACKET

1шт.

15

5083432

HOSE

1шт.

16

5083431

HOSE

1шт.

17

87720104

CLIP

1шт.

18

15688301

SELF-TAP SCREW,Pan Hd, M4.8 x 16mm

1шт.

19

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Hex, M8 x 1.25 x 20 mm, Cl 8.8

1шт.

20

14453083

O-RING

1шт.

21

14453283

O-RING,14mm ID x 1.78mm Width

14.00 mm ID x 1.78 mm Width

1шт.

22

14452883

O-RING,7.65mm ID x 1.78mm Width

7.65 mm ID x 1.78 mm Width

1шт.
