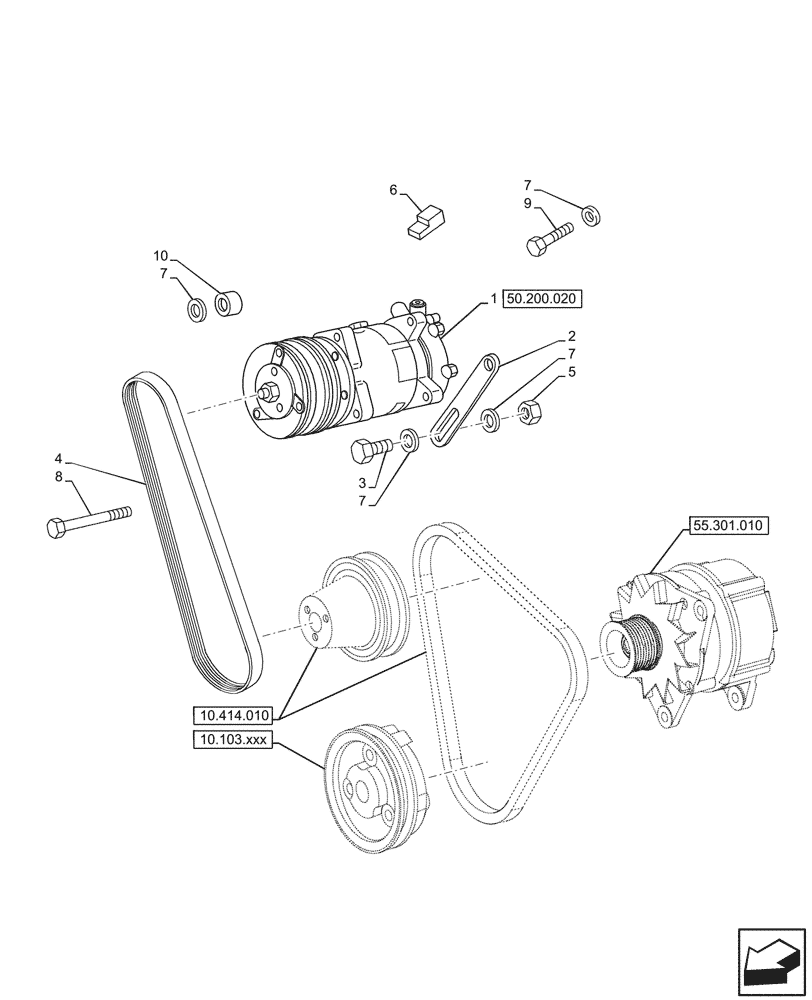

Запчасти Case IH JX95HC PLUS (50.200.010) - VAR - 391102 - AIR CONDITIONING, COMPRESSOR (50) - CAB CLIMATE CONTROL

1

84316006

AIRCOND. COMPRESSOR

ASSY

1шт.

2

5093993

TENSIONER

1шт.

3

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

5094418

V-BELT,10.00 mm W x 1050.00 mm L

1шт.

5

12164711

NUT,M10 x 1.25, Cl 8

2шт.

6

12055880

INSULATING BLOCK

1шт.

7

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

6шт.

8

15972321

SCREW,Hex, M10 x 1.25 x 125mm, Cl 8.8

1шт.

9

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

5116930

SPACER,11mm ID x 20mm OD x 9.9mm L

1шт.
