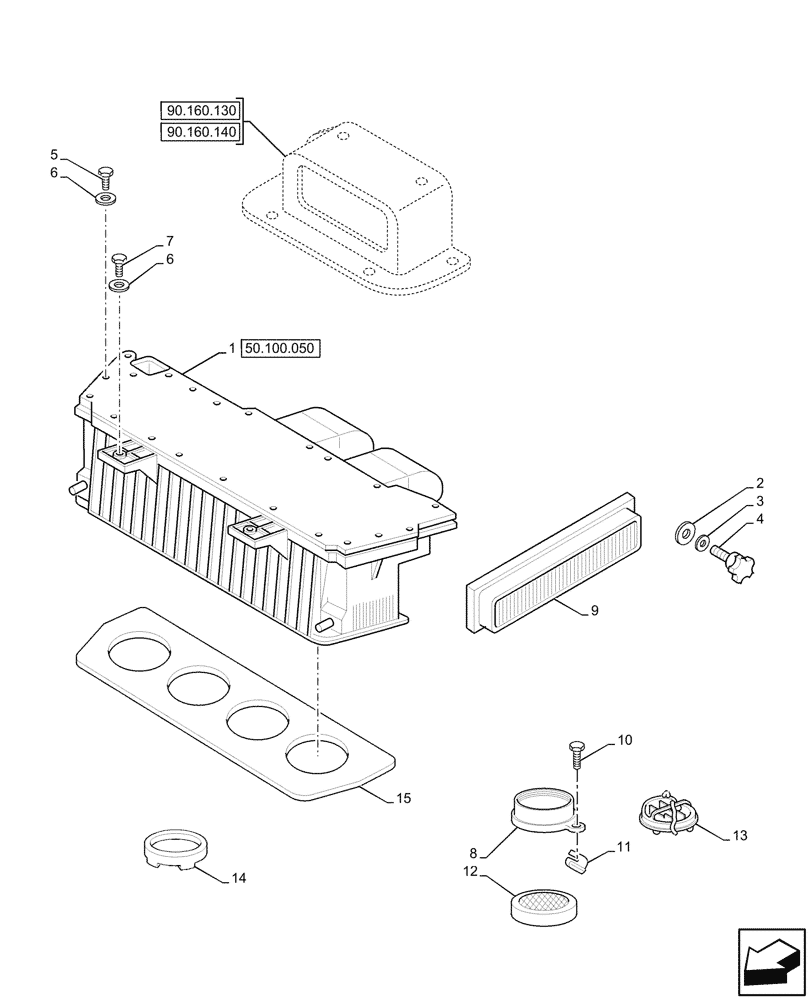

Запчасти Case IH JX95HC PLUS (50.100.040) - VAR - 390641 - HEATING SYSTEM (50) - CAB CLIMATE CONTROL

1

87701045

UNIT HEATER

ASSY

1шт.

2

5094485

WASHER

1шт.

3

5094484

WASHER

1шт.

4

5092916

KNOB

1шт.

5

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

2шт.

6

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

7

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

8

87574468

VENT

2шт.

9

87603874

CAB FILTER

1шт.

10

15909407

SELF-TAP SCREW,Pozidriv Oval Hd, M3.5 x 1.3 x 19mm

12шт.

11

14226690

SQUARE NUT

12шт.

12

87574476

FILTER

2шт.

13

5108688

DIFFUSER

4шт.

14

5108700

SEALING RING,98.5mm ID

4шт.
