(41.206.030) - STD + VAR - 391606 - POWER STEERING LINES, TANK, FILTER CARTRIDGE

Запчасти Case IH JX95HC PLUS (41.206.030) - STD + VAR - 391606 - POWER STEERING LINES, TANK, FILTER CARTRIDGE (41) - STEERING

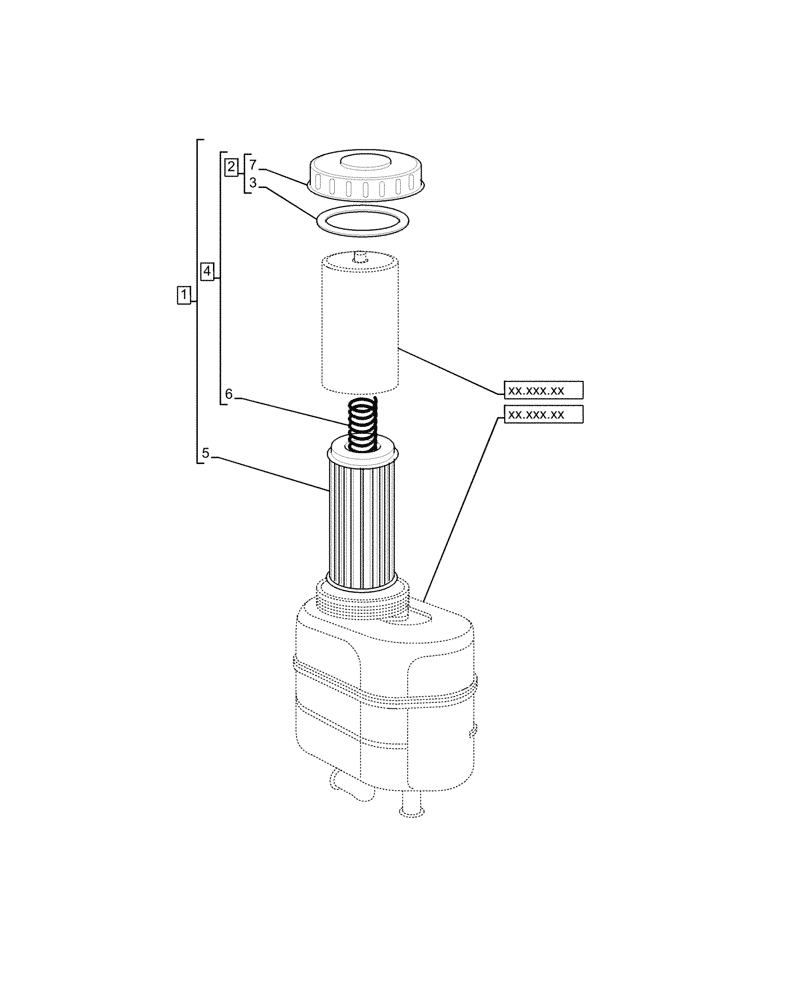

Схема запчастей Case IH JX95HC PLUS - (41.206.030) - STD + VAR - 391606 - POWER STEERING LINES, TANK, FILTER CARTRIDGE (41) - STEERING
2
7
5
1
xx.xxx.xx
3
4
6
xx.xxx.xx
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84264948

RESERVOIR, HYDRAULIC,0.85L

ASSY, Incl 2 - 6

1шт.

2

84264968

PLUG

1шт.

3

5106750

SEAL,50mm ID x 66mm OD x 3mm Thk

50.00mm ID x 66.00mm OD x 3.00mm Thk

1шт.

4

84264952

RESERVOIR, HYDRAULIC

1шт.

5

4997992

ELEMENT

1шт.

6

5103058

SPRING,Cylindrical, 12.5mm OD x 70mm L

1шт.

Выбрано товаров: 6
