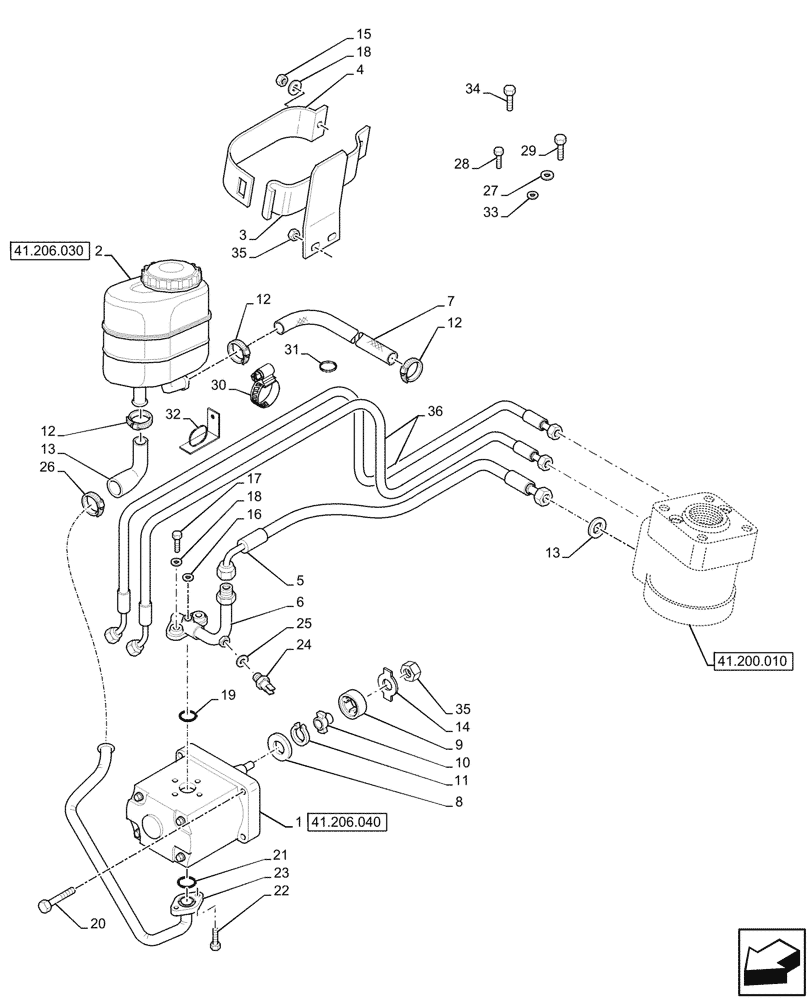

Запчасти Case IH JX95HC PLUS (41.206.020) - STD + VAR - 391606 - POWER STEERING LINES (41) - STEERING

1

87725756

HYDRAULIC PUMP

ASSY

1шт.

2

84264948

RESERVOIR, HYDRAULIC,0.85L

ASSY

1шт.

3

5094527

SUPPORT

1шт.

4

5085974

BRACKET

1шт.

5

84425482

HOSE ASSY.,12.7mm ID x 1065mm L, SAE 100R2

1шт.

6

5097594

HYD TUBE

1шт.

7

44903912

HOSE,15.9mm ID x 620mm L

15.90mm ID x 620.00 L

1шт.

8

5118568

CENTERING RING

1шт.

9

5118569

COUPLING

1шт.

10

5118570

HUB

1шт.

11

13398376

SNAP RING,M40, Int

M40, Int

1шт.

12

5112712

COLLAR,M4.8 x 283

M4.80 x 283.00

3шт.

13

5097871

HOSE

1шт.

14

8273920

LOCK WASHER

1шт.

15

15896211

NUT,M6, Cl 8

M6, Cl 8 M6.00 x 12.50

1шт.

16

10260160

SEAL,M10.2 x 14 x 1

M10.20 x 14.00 x 1.00

2шт.

17

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

Hex, M6.00 x 20.00mm, Cl 8.8

2шт.

18

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

4шт.

19

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

20

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

Hex, M6.00 x 35.00mm, Cl 8.8

4шт.

21

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

22

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

M8.00 x 1.25 x 18.00mm, Cl 8.8, Full Thd

2шт.

23

5097593

HYD TUBE

1шт.

24

5099414

PRESSURE SWITCH

1шт.

25

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

9.73mm ID x 18.00mm OD x 1.50mm Thk

1шт.

26

47934046

HOSE CLAMP

1шт.

27

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

Wave, 10.50mm ID x 21.00mm OD x0.80mm, 3.00mm, CST, DAC

2шт.

28

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

Hex, M6.00 x 16.00mm, CL 8.8

1шт.

29

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

Hex, M6.00 x 30.00mm, Cl 8.8

2шт.

30

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

16.00 x 25.00mm

4шт.

31

47895606

BACK-UP RING

2шт.

32

47770820

CLAMP

1шт.

33

10569374

LOCK WASHER,M8

M8

2шт.

34

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

35

5093733

NUT

1шт.

36

5096500

HOSE

2шт.
