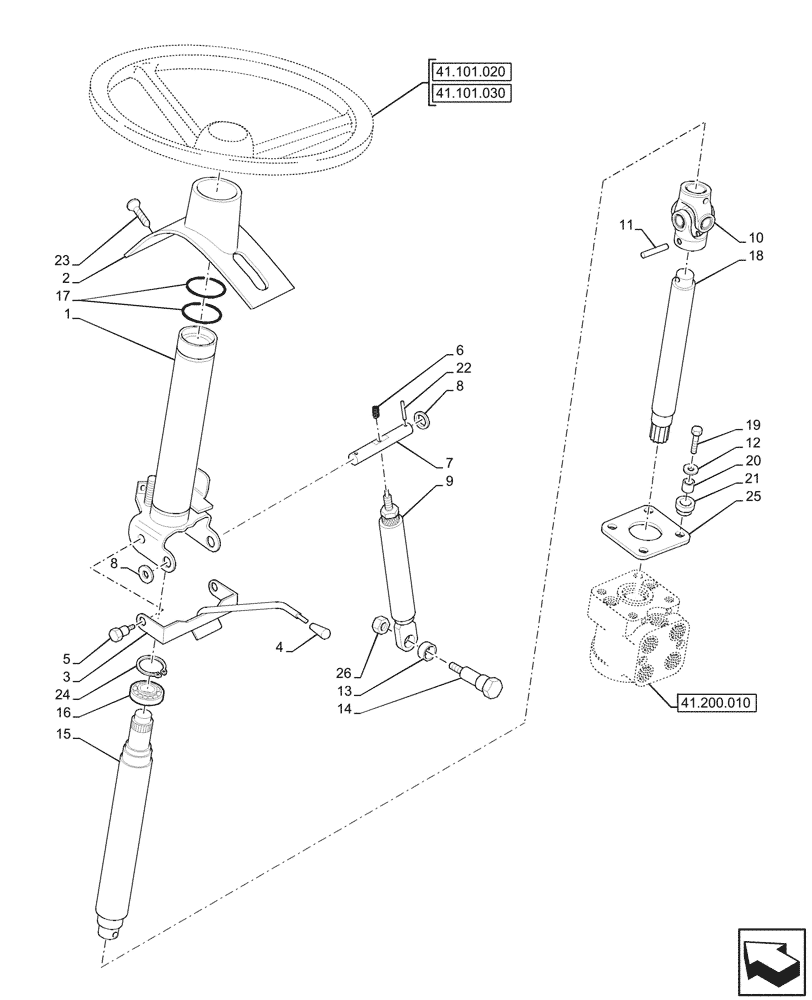

Запчасти Case IH JX95HC PLUS (41.101.010) - STD + VAR - 391606 - STEERING COLUMN (41) - STEERING

1

84152486

STEERING COLUMN

1шт.

2

87654786

PROTECTOR

1шт.

3

5089762

LEVER

1шт.

4

5177017

HANDLE GRIP

1шт.

5

5089591

BOLT,Hex, M10 x 1.25 x 41mm

Hex, M10.00 x 1.25 x 41.00mm

2шт.

6

5089761

SPRING

1шт.

7

84478473

PIN,16mm OD x 136mm L

16.00mm OD x 136.00mm L

1шт.

8

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

16.40mm ID x 28.00mm OD x 3.00mm Thk

2шт.

9

87732038

GAS STRUT

1шт.

10

5097932

UNIVERSAL JOINT

1шт.

11

14604370

ROLL PIN,M6 x 36, Slotted

M6.00 x 36.00, Slotted 4.00 x 36.00

2шт.

12

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

10.20mm ID x 25.00mm OD x 2.00mm Thk

4шт.

13

5089756

SLEEVE,13mm ID x 17mm OD x 6.5mm L

13.00mm ID x 17.00mm OD x 6.50mm L

1шт.

14

5089588

BOLT

1шт.

15

5097931

SHAFT

1шт.

16

5090125

BALL BEARING,25 mm ID x 42 mm OD x 9 mm

25.00mm ID x 42.00mm OD x 9.00mm

1шт.

17

14464280

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

18

5097930

SHAFT

1шт.

19

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

Hex, M10.00 x 1.50 x 30.00mm, Cl 8.8

4шт.

20

5091784

SPACER,10.1mm ID x 14mm OD x 12mm L

10.10mm ID x 14.00mm OD x 12.00mm L

4шт.

21

5091785

BUSHING,14mm ID x 20mm OD x 8mm L

14.00mm ID x 20.00mm OD x 8.00mm L

4шт.

22

10733601

COTTER PIN,M3.2 x 22

M3.20 x 22.00

2шт.

23

10444821

SCREW,Hex, M4 x 16mm, Cl 8.8, Full Thd

Hex, M4.00 x 16.00mm, Cl 8.8, Full Thd

2шт.

24

11067376

SNAP RING,M25, Ext

M25, Ext

1шт.

25

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

45.00mm ID x 82.00mm OD x 5.00mm Thk

1шт.

26

12164711

NUT,M10 x 1.25, Cl 8

1шт.
