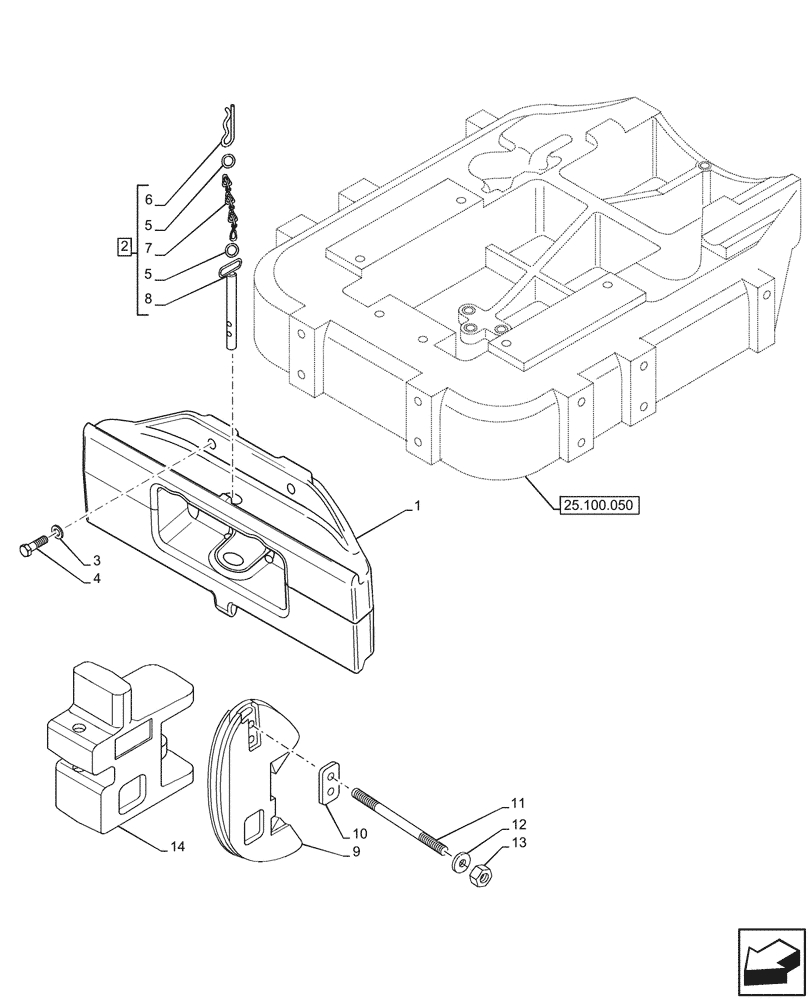

Запчасти Case IH JX95HC PLUS (39.140.040) - VAR - 335241 - FRONT WEIGHT CARRIER, WEIGHTS (6X45KG), W/ HOOK (458KG) (39) - FRAMES AND BALLASTING

1

84558684

WEIGHT CARRIER

Front Ballast

1шт.

2

47774992

TOW BAR

ASSY, Incl 5 - 8

2шт.

3

11191579

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

4шт.

4

15981221

SCREW,Hex, M16 x 1.5 x 65mm, Cl 8.8

4шт.

5

44901192

SNAP RING,25mm ID

2шт.

6

5093257

SPLIT PIN/SAFETY PIN,8mm OD x 100mm L

1шт.

7

NSS

NOT SOLD SEPARAT

Steel Cable, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Pin, Clevis, Incl in 2

1шт.

9

5091956

WEIGHT

45 Kg

6шт.

10

5092098

PLATE

Locking

2шт.

11

5092101

THREADED ROD

2шт.

12

5092100

SPACER,17.5mm ID x 34mm OD x 5mm L

4шт.

13

12164111

NUT,M16, Cl 8

4шт.

14

5092096

WEIGHT

Front Ballast

1шт.
