Запчасти Case IH JX95HC PLUS (37.120.010) - STD + VAR - 334421, 334424, 335905 - IMPLEMENT CONTROL, SWING CARRIAGE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

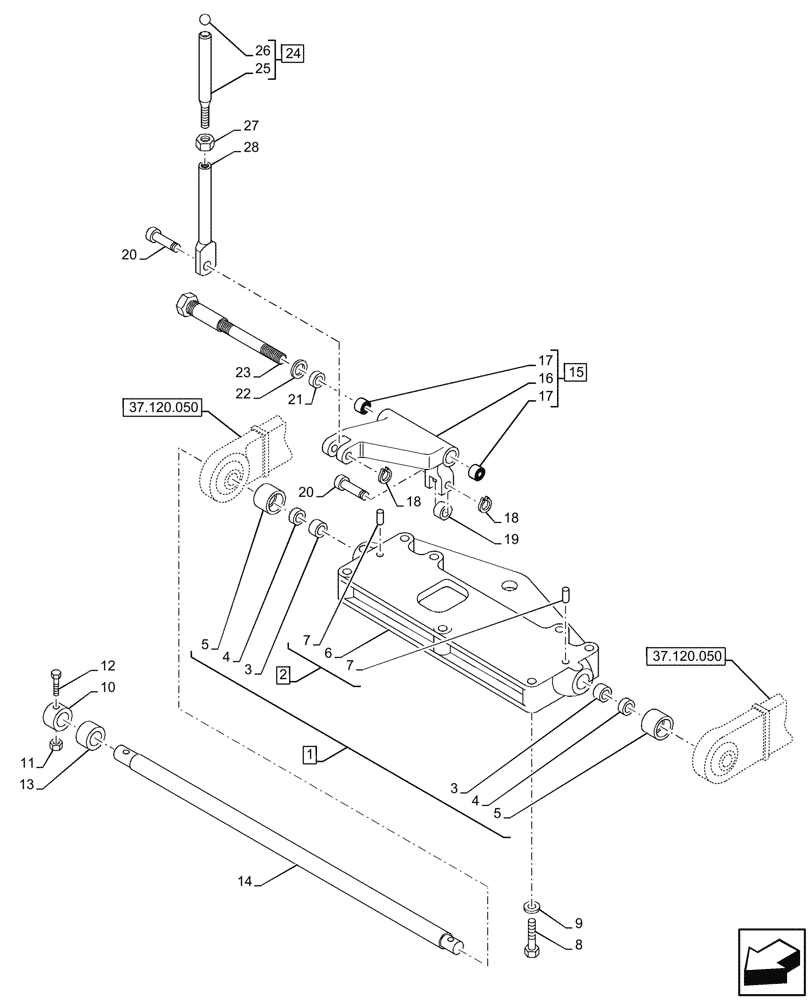

Схема запчастей Case IH JX95HC PLUS - (37.120.010) - STD + VAR - 334421, 334424, 335905 - IMPLEMENT CONTROL, SWING CARRIAGE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
7
11
1
18
9
19
20
18
22
17
14
2
25
16
10
4
13
3
6
8
20
5
12
26
21
15
3
24
37.120.050
27
37.120.050
4
7
17
28
23

Артикул

Название

Примечание

Количество

1

5094342

SUPPORT

ASSY, Incl 2 - 7

1шт.

2

5094343

SUPPORT

ASSY, Incl 6, 7

1шт.

3

5109977

SPHERICAL BEARING,30mm ID x 47mm OD x 22mm W

2шт.

4

47129340

OIL SEAL,28.1mm ID x 42.5mm OD x 13.8mm Thk

2шт.

5

5171675

SPACER,46.98mm ID x 54.05mm OD x 40.5mm L

2шт.

6

5094344

SUPPORT

1шт.

7

5119529

DOWEL,15mm OD x 22mm L

2шт.

8

15981624

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

3шт.

9

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

3шт.

10

5116247

RING,24mm ID x 38.4mm OD x 25mm L

2шт.

11

12574511

LOCK NUT,M10 x 1.25, Cl 8

2шт.

12

15888731

SCREW,Hex, M10 x 1.25 x 55mm, Cl 10.9

2шт.

13

5177788

SPACER,25.5mm ID x 40mm OD x 14mm L

2шт.

14

5094340

STABILIZER BAR,596mm L

1шт.

15

5118548

LEVER

1шт.

16

NSS

NOT SOLD SEPARAT

Lever, Incl in 15

1шт.

17

5109160

ROLLER BEARING,Needle, 14mm ID x 20mm OD x 12mm W

2шт.

18

11065976

CIRCLIP,M10, Ext

2шт.

19

5109156

ROLLER,21mm OD x 12mm L

1шт.

20

5109172

PIN,10mm OD x 33mm L

2шт.

21

5117691

SPACER,14.1mm ID x 19mm OD x 10mm L

1шт.

22

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

23

5094341

PIN,22mm OD x 195mm L

1шт.

24

5134791

ROD

1шт.

25

5134790

DRAWBAR AND HITCH

1шт.

26

20063570

BALL,10.32mm OD

1шт.

27

10791011

THIN NUT,Thin, M10 x 1.25, Cl 04

1шт.

28

5119957

ROD

1шт.

Выбрано товаров: 28
