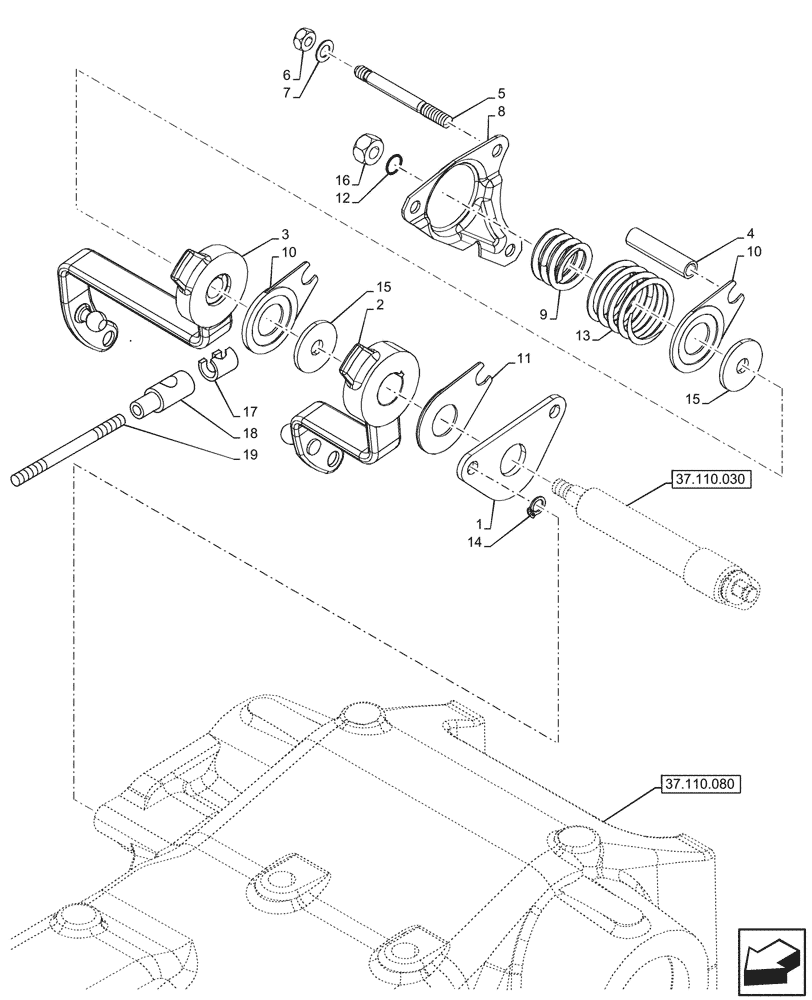

Запчасти Case IH JX95HC PLUS (37.110.070) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CONTROL LEVER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5089939

SPACER

1шт.

2

87636989

LEVER

1шт.

3

5097775

LEVER

1шт.

4

5117204

SPACER,8.5mm ID x 12mm OD x 51.5mm L

2шт.

5

13518021

STUD,M8 x 70mm L

3шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

3шт.

8

5089614

SHIELD

1шт.

9

4952761

SPRING,Compression, 34mm OD x 25.5mm L

1шт.

10

5165184

PLATE

2шт.

11

5165246

PLATE

1шт.

12

14453080

O-RING,0.426" ID x 0.07"

1шт.

13

4973370

SPRING,Compression, 44mm OD x 38mm L

1шт.

14

11065576

SNAP RING,M7, Ext

2шт.

15

12644301

WASHER,M10 x 35 x 3

2шт.

16

12575611

LOCK NUT,M10 x 1.25

1шт.

17

10125574

CLAMP,13mm

4шт.

18

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

4шт.

19

5097774

ROD

2шт.
