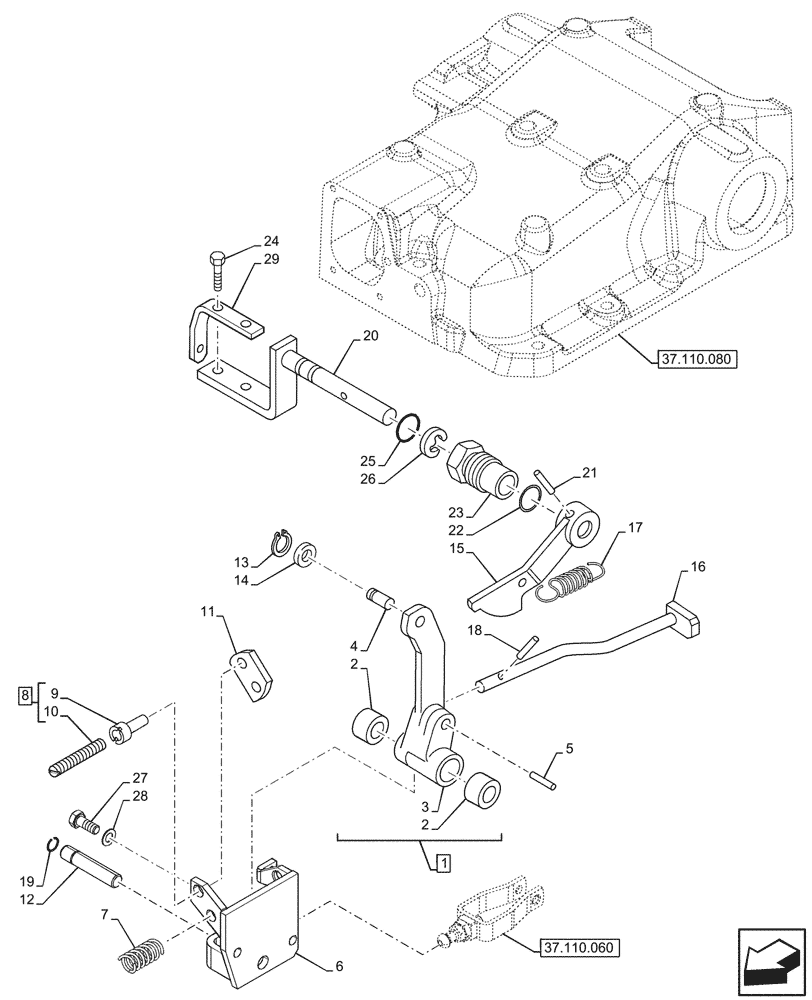

Запчасти Case IH JX95HC PLUS (37.110.050) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, LEVER, TIE-ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5126221

ROD

ASSY, Incl 2 - 4

1шт.

2

5117138

ROLLER BEARING,12 mm ID x 16 mm OD x 10 mm

2шт.

3

5126220

CONNECTING LINK

1шт.

4

5129392

PIN,7.5mm OD x 22.5mm L

1шт.

5

14162070

LOCK PIN,M3 x 22, Slotted

1шт.

6

5129400

SUPPORT

1шт.

7

4959139

SPRING,Compression, 15.5mm OD x 71mm L

1шт.

8

5087209

BOLT AND NUT

ASSY, Incl 9, 10

1шт.

9

5121523

NUT,M8 x 1.25 x 26mm

1шт.

10

5121522

ADJUSTMENT SCREW,M8 x 1.25 x 55mm

1шт.

11

5120284

PAD

1шт.

12

5117156

PIN,12mm OD x 61.5mm L

1шт.

13

11065676

SNAP RING,M8, Ext

1шт.

14

5111028

ROLLER,18mm OD x 10mm L

1шт.

15

5129396

LEVER

1шт.

16

5120285

ROD

1шт.

17

4973650

SPRING,Extension, 15mm OD x 57mm L

1шт.

18

14163970

COTTER PIN,M4 x 20, Slotted

1шт.

19

13397576

CIRCLIP,12mm ID

1шт.

20

5089954

LEVER

1шт.

21

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

1шт.

22

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

23

5129399

PLUG,M22 x 1.5

1шт.

24

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

25

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

2шт.

26

11088176

CIRCLIP,M11

1шт.

27

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

28

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

29

5099847

SUPPORT

1шт.
