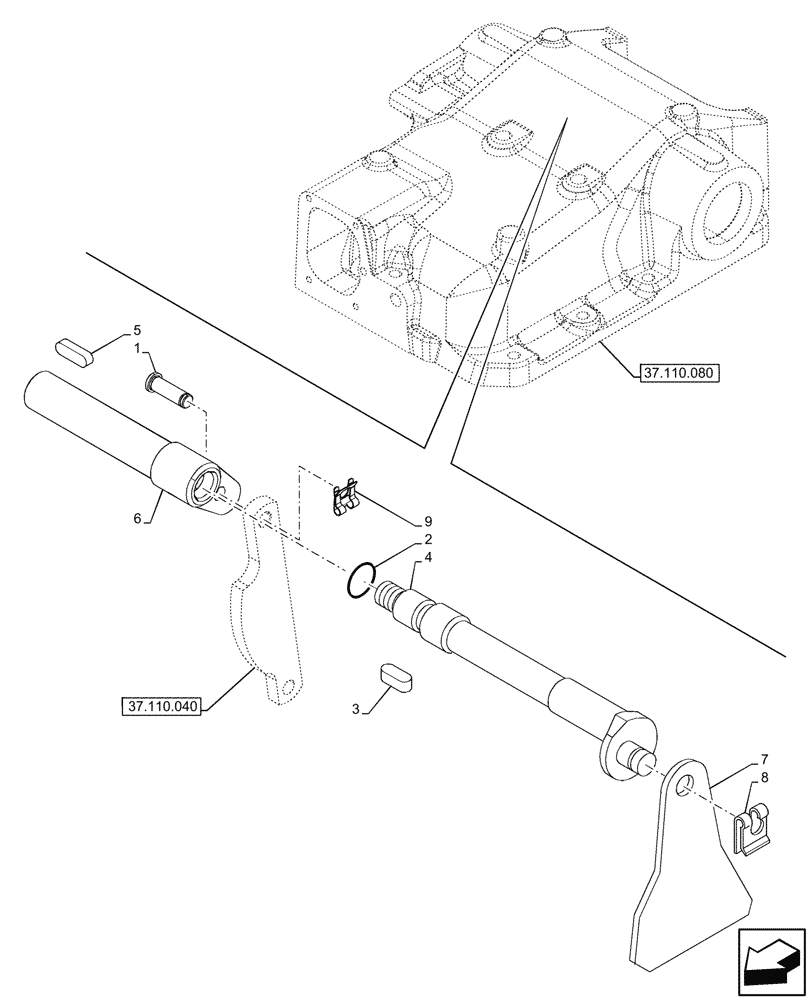

/ / / / / / / / (37.110.030) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, LEVER, SHAFT
Запчасти Case IH JX95HC PLUS (37.110.030) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, LEVER, SHAFT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
37.110.040
5
4
7
8
9
3
37.110.080
6
1
1
5117161
PIN,8mm OD x 27mm L
1шт.
2
14457681
O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro
1шт.
3
10617610
KEY,5mm x 5mm x 10mm
1шт.
4
5097697
SHAFT
1шт.
5
14721010
KEY,4mm x 4mm x 14mm
1шт.
6
5097696
CONTROL SHAFT
1шт.
7
5117143
LEVER
1шт.
8
11064174
CLIP
1шт.
9
11064074
RETAINER,8mm ID
1шт.
