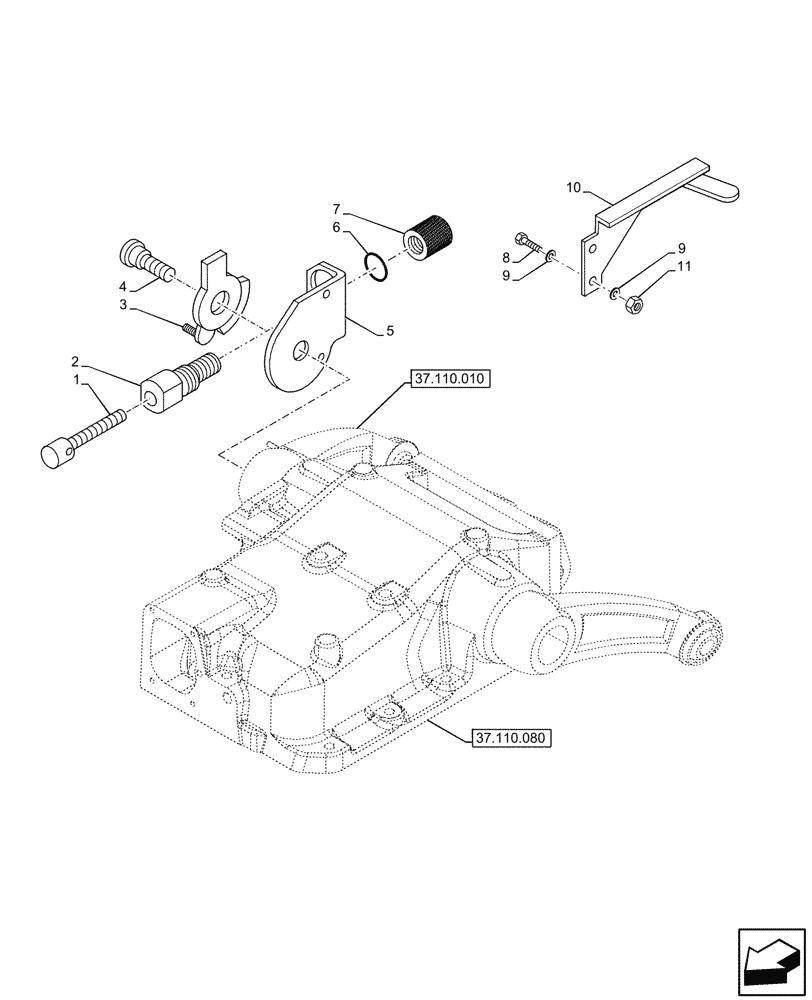

Запчасти Case IH JX95HC PLUS (37.108.030) - VAR - 334957 - LIFT-O-MATIC, CONTROL (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47134219

ADJUSTMENT SCREW,M8 x 1.25 x 63mm L

1шт.

2

5194677

BOLT,Bolt

1шт.

3

47134217

SECTOR

1шт.

4

5194674

HEX SOC SCREW,Hex, M14 x 1.5 x 47mm

1шт.

5

87696283

SUPPORT

1шт.

6

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

7

47134218

KNOB

1шт.

8

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.

9

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

4шт.

10

47470906

SUPPORT

1шт.

11

15896211

NUT,M6, Cl 8

2шт.
