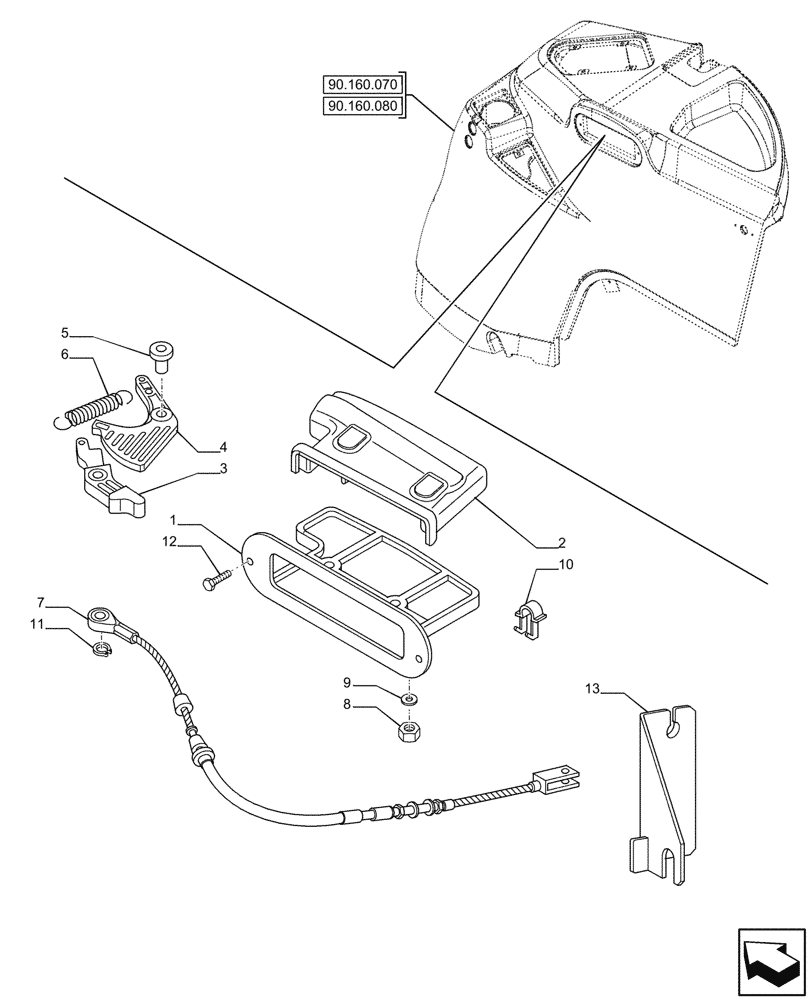

Запчасти Case IH JX95HC PLUS (37.108.020) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CONTROL LEVER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87390528

SUPPORT

1шт.

2

87390496

SUPPORT

1шт.

3

87564632

LATCH

1шт.

4

87564634

LEVER

1шт.

5

87564636

SPACER

2шт.

6

5128638

SPRING

1шт.

7

47739730

CABLE

L=1355mm

1шт.

8

12574211

NUT,M6 x 1, Cl 8

2шт.

9

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

10

14569680

SPRING CLIP,6.5mm Hole, Gray

1шт.

11

11087676

CIRCLIP,M5

1шт.

12

15931411

SELF-TAP SCREW,Self Tap, Pan, M4 x 1.4 x 25mm

2шт.

13

87601161

SUPPORT

1шт.
