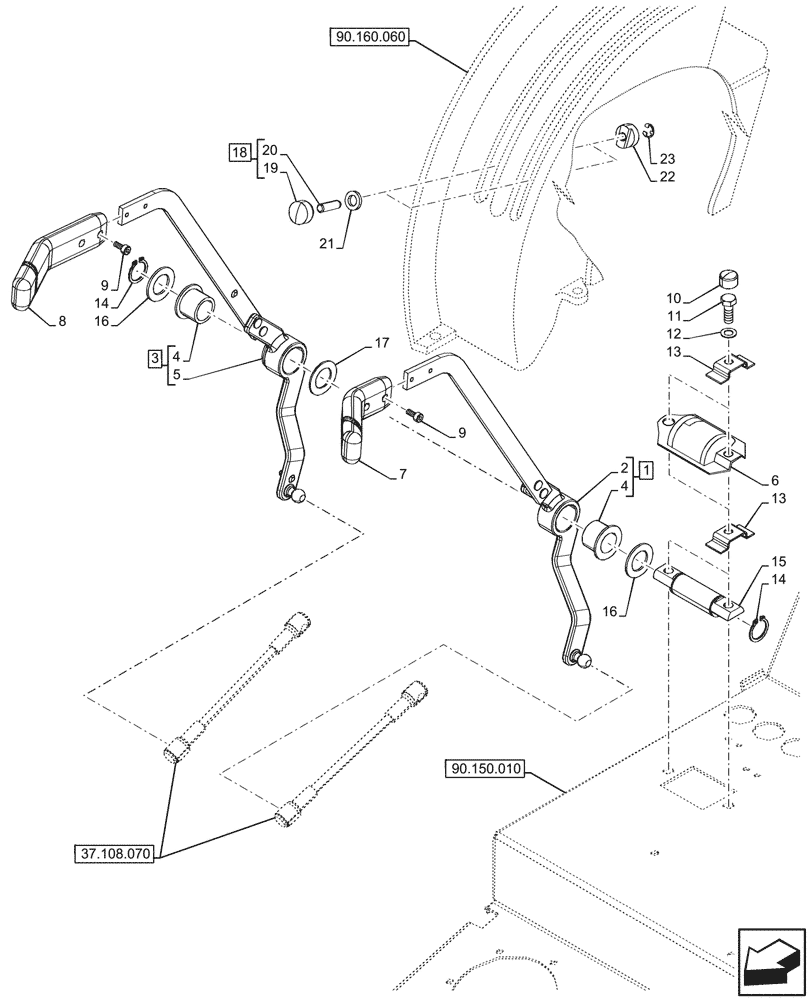

Запчасти Case IH JX95HC PLUS (37.108.010) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CONTROL LEVER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5097769

LEVER

1шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

3

5097767

LEVER

ASSY, Incl 4 (Qty 1), 5

1шт.

4

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.

5

NSS

NOT SOLD SEPARAT

Lever, Incl in 3

1шт.

6

5094624

COVER

1шт.

7

5126318

KNOB,Black

Black

1шт.

8

5126315

KNOB,Black

Black

1шт.

9

14302928

BOLT,M4 x 0.7 x 10mm, Cl 8.8

4шт.

10

5089481

CAP,17mm OD

4шт.

11

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

12

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

13

5095547

SUPPORT

4шт.

14

11066976

SNAP RING,M21, Ext

2шт.

15

5133375

PIN,20mm OD x 100mm L

1шт.

16

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

17

5089035

WASHER

1шт.

18

47133460

KNOB

ASSY, Incl 19, 20

2шт.

19

NSS

NOT SOLD SEPARAT

Knob, Incl in 18

1шт.

20

44908300

STUD,M8 x 30mm L

1шт.

21

5108290

WASHER,10.5mm ID x 18mm OD x 3mm Thk

2шт.

22

47133761

STOP

2шт.

23

11087776

CIRCLIP,Ext., M6, BLO

2шт.
