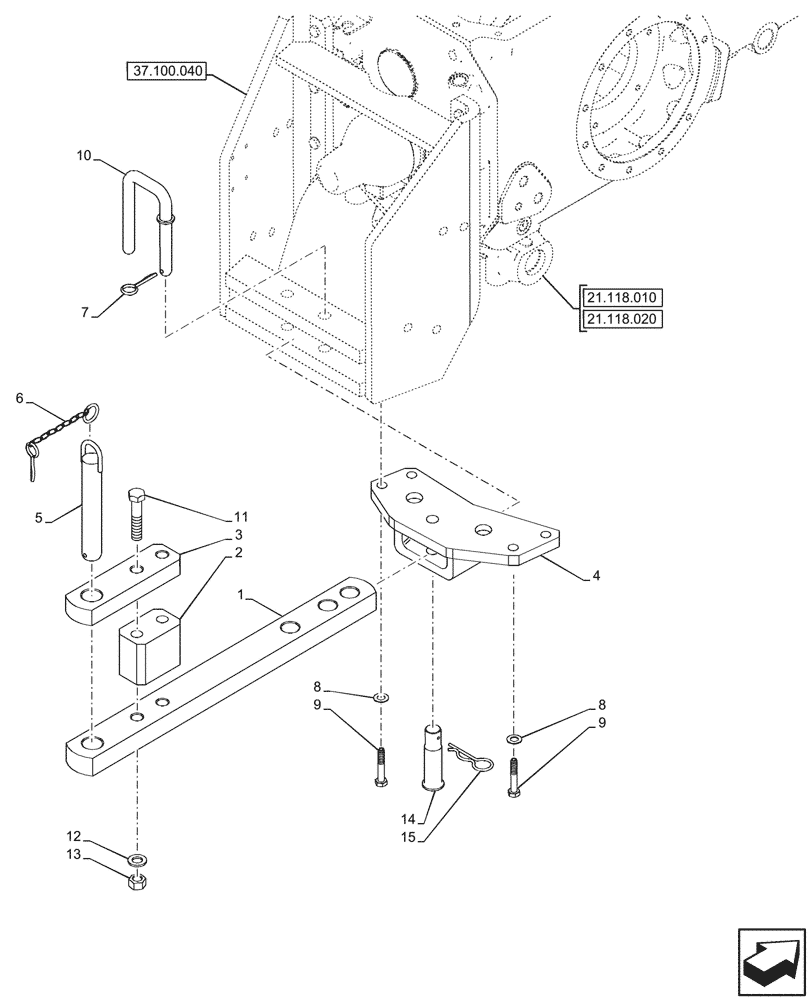

Запчасти Case IH JX95HC PLUS (37.100.010) - STD + VAR - 334424 - INDIPENDENT DRAWBAR, SUPPORT, W/ CLEVIS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5094000

DRAWBAR,668mm L x 60mm W x 35mm Thk

1шт.

2

5121551

SPACER

1шт.

3

5093297

DRAWBAR,220mm L x 60mm W x 30mm Thk

1шт.

4

5120238

BRACKET

1шт.

5

5093226

HITCH PIN,31.5mm OD x 192mm L

1шт.

6

5085461

COTTER PIN

1шт.

7

5112606

COTTER PIN,2.5mm OD x 66.5mm L

1шт.

8

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

9

11391521

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

10

5123643

PIN

1шт.

11

15986634

BOLT,Hex, M18 x 1.5 x 170mm, Cl 10.9

2шт.

12

12601874

SPRING WASHER,19mm ID x 34mm OD x 1.6mm Thk

2шт.

13

10721021

NUT,M18 x 1.5, Cl 10

2шт.

14

84195997

PIN,28mm OD x 111mm L

1шт.

15

84416689

COTTER PIN

1шт.
