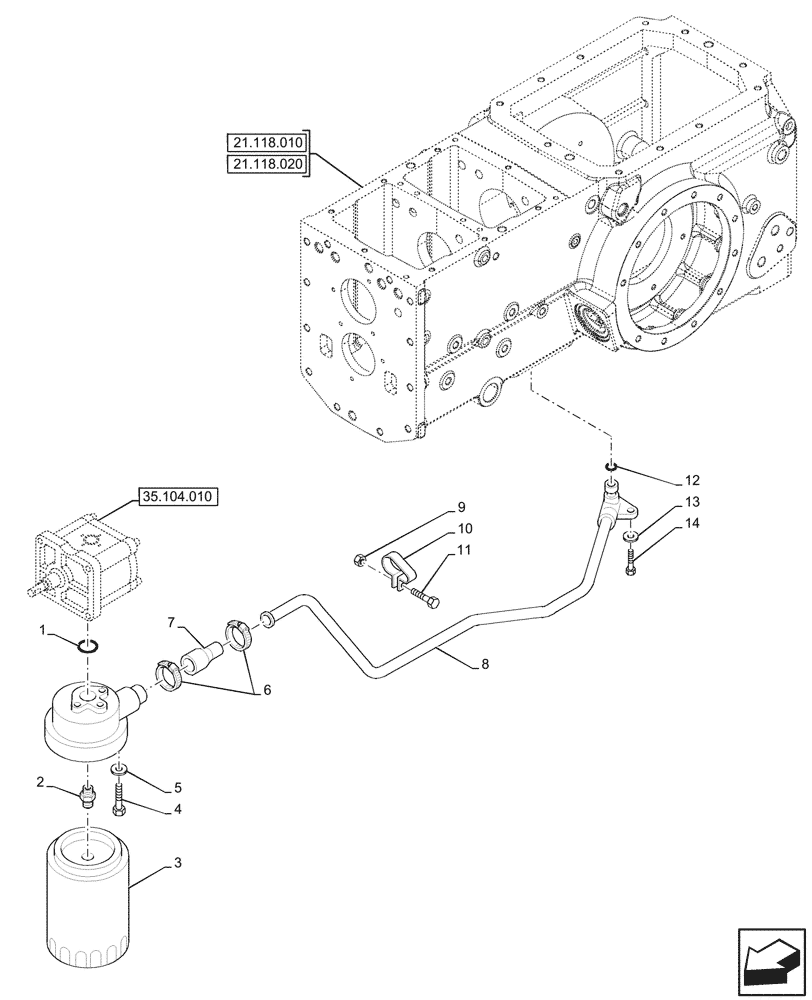

Запчасти Case IH JX95HC PLUS (35.220.010) - STD + VAR - 334957, 390831 - OIL FILTER, CONNECTORS & LINES (35) - HYDRAULIC SYSTEMS

1

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

2

5085665

ADAPTER,M24 x 1.5 x 1-1/8" - 16

1шт.

3

5097104

HYDRAULIC OIL FILTER

1шт.

4

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

3шт.

5

14330260

SEALING WASHER,M8.2 x 12 x 1

3шт.

6

5085778

CLAMP

2шт.

7

5118862

HOSE,31.00 mm ID, 35.00 mm ID x 75.00 mm

1шт.

8

5092059

HYD TUBE

1шт.

9

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

10

5120430

HOSE CLIP

1шт.

11

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

12

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

13

12601574

WAVE WASHER,Wave, M13

1шт.

14

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

1шт.

15

5094372

FILTER HEAD

1шт.
