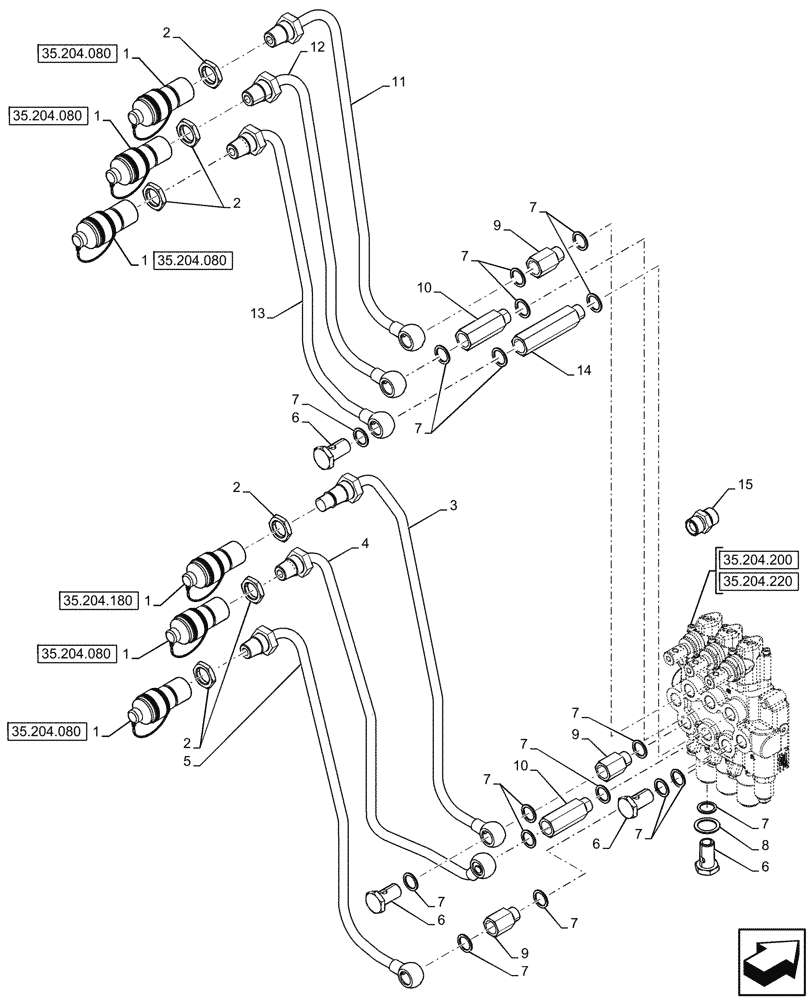

Запчасти Case IH JX95HC PLUS (35.204.170) - VAR - 335103 - REMOTE CONTROL VALVE, REAR, HOSE (35) - HYDRAULIC SYSTEMS

1

5093853

COUPLING, QUICK, FEM,Black

Green, ASSY

6шт.

2

5129168

BHD LOCK NUT,M24 x 1.5

6шт.

3

5083274

PIPE

1шт.

4

5083280

PIPE

1шт.

5

5083286

PIPE

1шт.

6

5100984

BANJO BOLT,M18 x 1.5, 34mm L

9шт.

7

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

25шт.

8

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.

9

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

3шт.

10

5092079

SPACER,M18 x 1.5 NPT x M18 x 1.5

2шт.

11

5083276

PIPE

1шт.

12

5083282

PIPE

1шт.

13

5083288

TUBE

1шт.

14

5092078

SPACER,M18 x 1.5 NPT x M18 x 1.5

1шт.

15

5087002

HYD CONNECTOR

1шт.
