(35.204.130) - STD + VAR - 335413 - REMOTE CONTROL VALVE, REAR, 2 REMOTE CONTROL VALVES (1 S/D + 1 DOUBLE ACTING WITH FLOAT KICK OUT)

Запчасти Case IH JX95HC PLUS (35.204.130) - STD + VAR - 335413 - REMOTE CONTROL VALVE, REAR, 2 REMOTE CONTROL VALVES (1 S/D + 1 DOUBLE ACTING WITH FLOAT KICK OUT) (35) - HYDRAULIC SYSTEMS

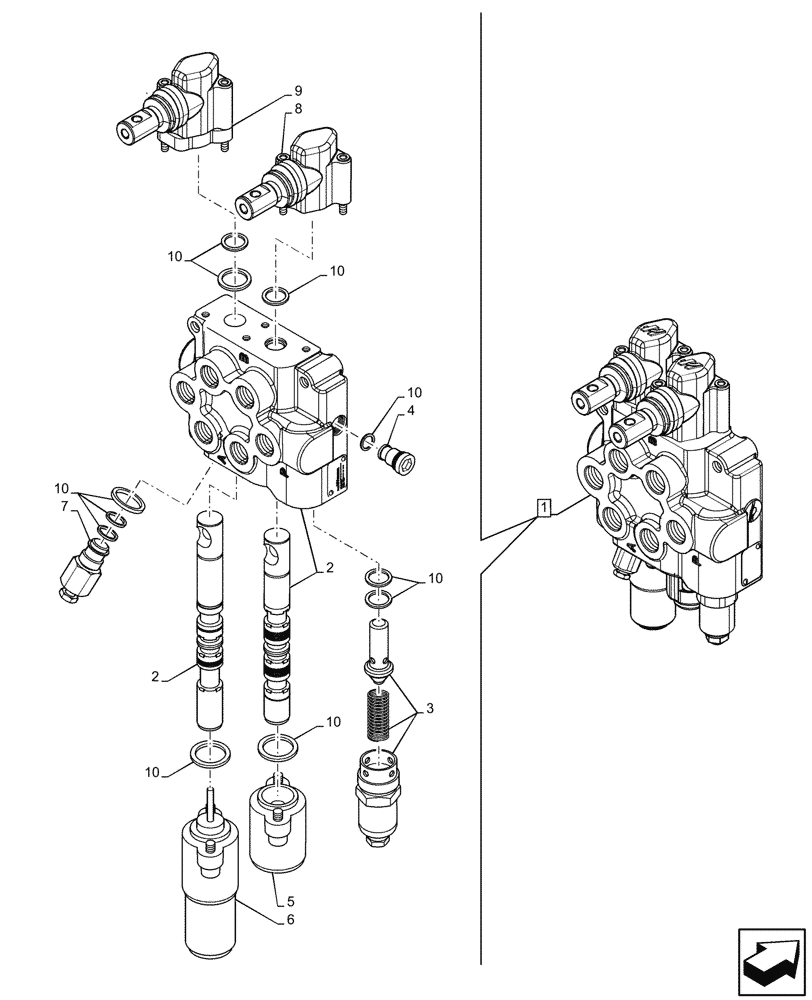

Схема запчастей Case IH JX95HC PLUS - (35.204.130) - STD + VAR - 335413 - REMOTE CONTROL VALVE, REAR, 2 REMOTE CONTROL VALVES (1 S/D + 1 DOUBLE ACTING WITH FLOAT KICK OUT) (35) - HYDRAULIC SYSTEMS
3
10
10
1
10
4
7
9
2
2
10
10
5
10
8
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84185655

CONTROL VALVE

ASSY, Incl 2 - 10

1шт.

2

84286926

VALVE BODY

1шт.

3

5083046

VALVE PRESSURE RELIE

1шт.

4

5083047

CHECK VALVE

1шт.

5

5083048

ACTUATOR

1шт.

6

84286924

ACTUATOR

1шт.

7

5083049

VALVE

1шт.

8

5083050

CONTROL

1шт.

9

84286923

CONTROL

1шт.

10

84285436

SEAL KIT

1шт.
