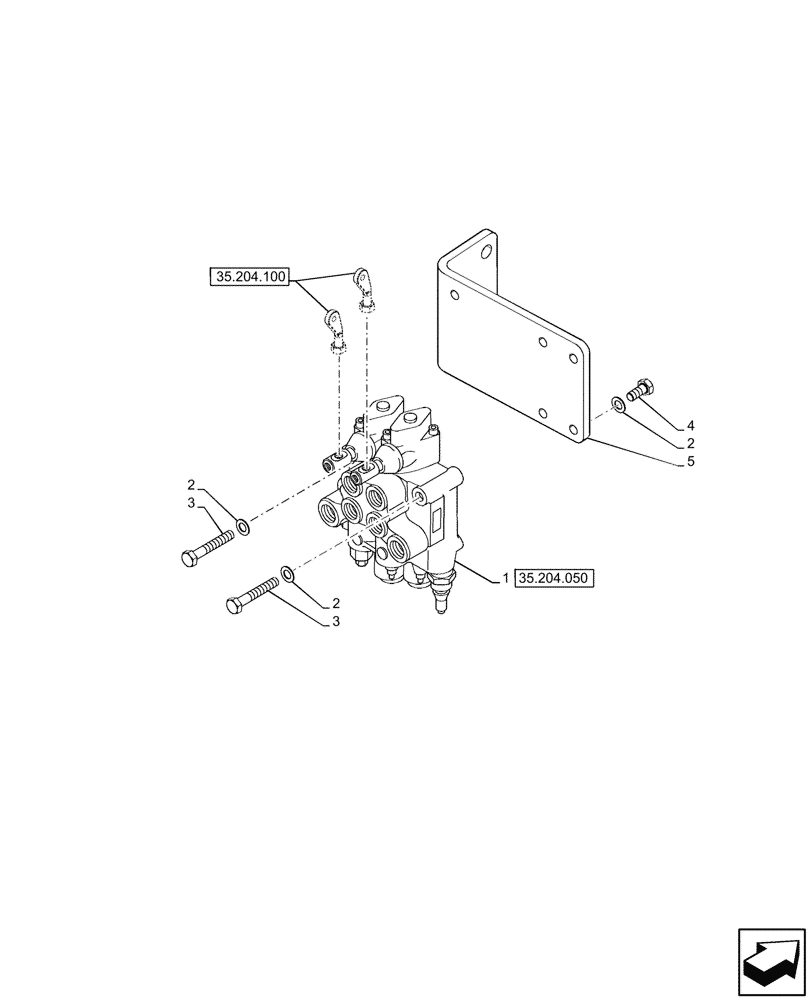

Запчасти Case IH JX95HC PLUS (35.204.090) - VAR - 335417 - REMOTE CONTROL VALVE, REAR, 2 REMOTE CONTROL VALVES (1 S/D W/ KICK OUT + 1 DOUBLE ACTING WITH FLOAT KICK OUT) (35) - HYDRAULIC SYSTEMS
2
1
3
5
4
2
35.204.050
2
3
35.204.100
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
47484297
CONTROL VALVE
ASSY
1шт.
2
12601374
WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC
3шт.
3
16044421
SCREW,Hex, M8 x 60mm, Cl 8.8
2шт.
4
16043221
BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd
1шт.
5
5092077
SUPPORT
1шт.
Выбрано товаров: 5
