(35.116.010) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CYLINDER, PISTON

Запчасти Case IH JX95HC PLUS (35.116.010) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CYLINDER, PISTON (35) - HYDRAULIC SYSTEMS

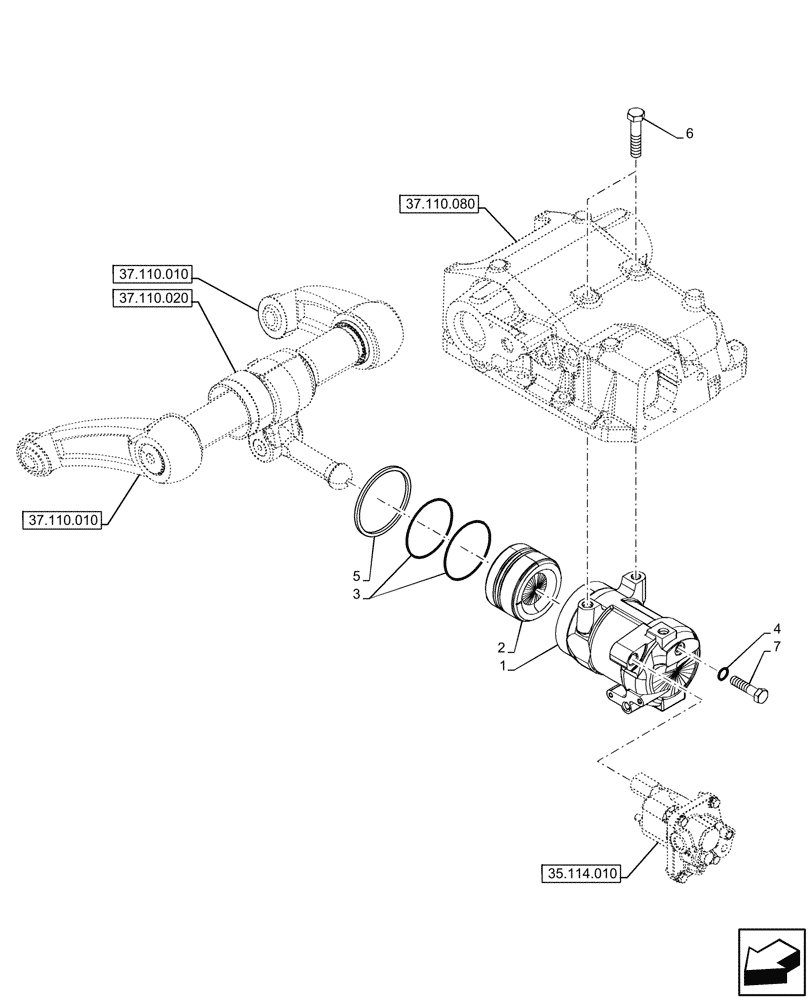

Схема запчастей Case IH JX95HC PLUS - (35.116.010) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CYLINDER, PISTON (35) - HYDRAULIC SYSTEMS
37.110.020
6
2
37.110.080
1
37.110.010
3
5
4
35.114.010
7
37.110.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5131998

LIFT CYLINDER,86mm Bore Dia

1шт.

2

47497752

PISTON

1шт.

3

14465980

O-RING,98.02mm ID x 3.53mm Width

2шт.

4

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

5

5125941

GUIDE RING,100mm ID x 110mm OD x 4.2mm Thk

2шт.

6

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

2шт.

7

15977534

BOLT,Hex, M14 x 1.5 x 60mm, Cl 10.9

1шт.
