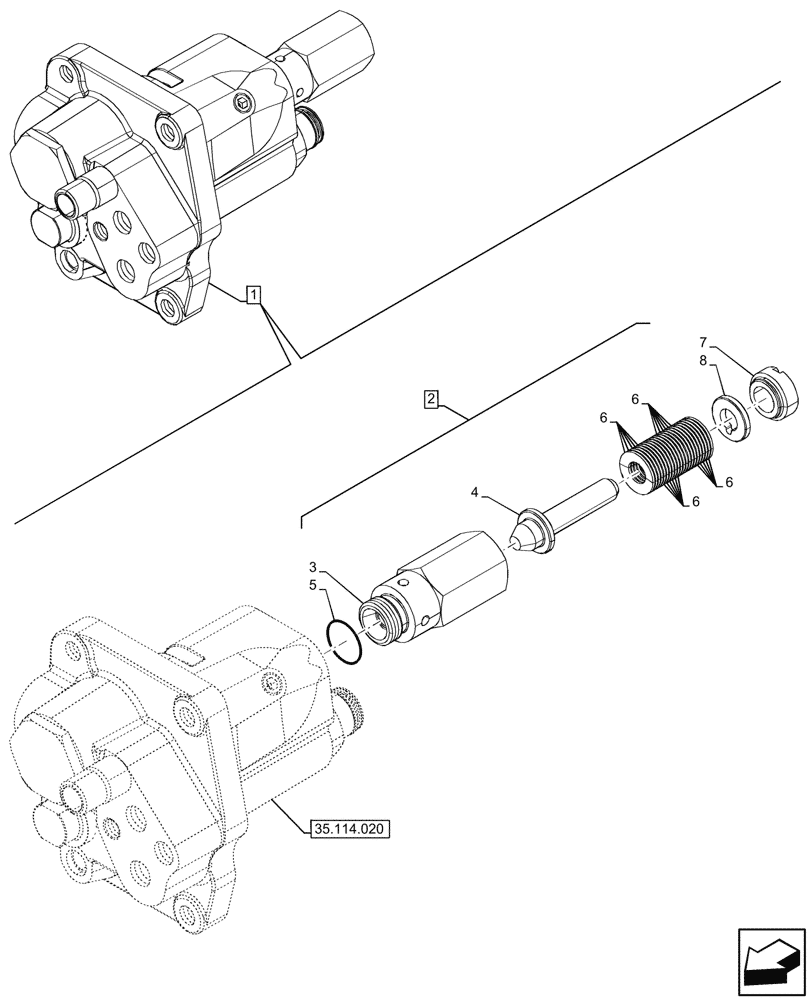

Запчасти Case IH JX95HC PLUS (35.114.040) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

5089469

CONTROL VALVE

ASSY, Incl 2 - 8

1шт.

2

5117739

VALVE PRESSURE RELIE,M20 x 1.5

ASSY, Incl 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Relief Valve Seat, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Cylinder, Pressure Relief Valve, Incl in 2

1шт.

5

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

6

586761

VALVE SPRING,10.2mm ID x 20mm OD x 1.1mm Thk

22шт.

7

NSS

NOT SOLD SEPARAT

Ring Nut, Pressure Relief Valve, Incl in 2

1шт.

8

4951123

SPRING WASHER,10.1mm ID x 20.4mm OD x 3mm Thk

1шт.
