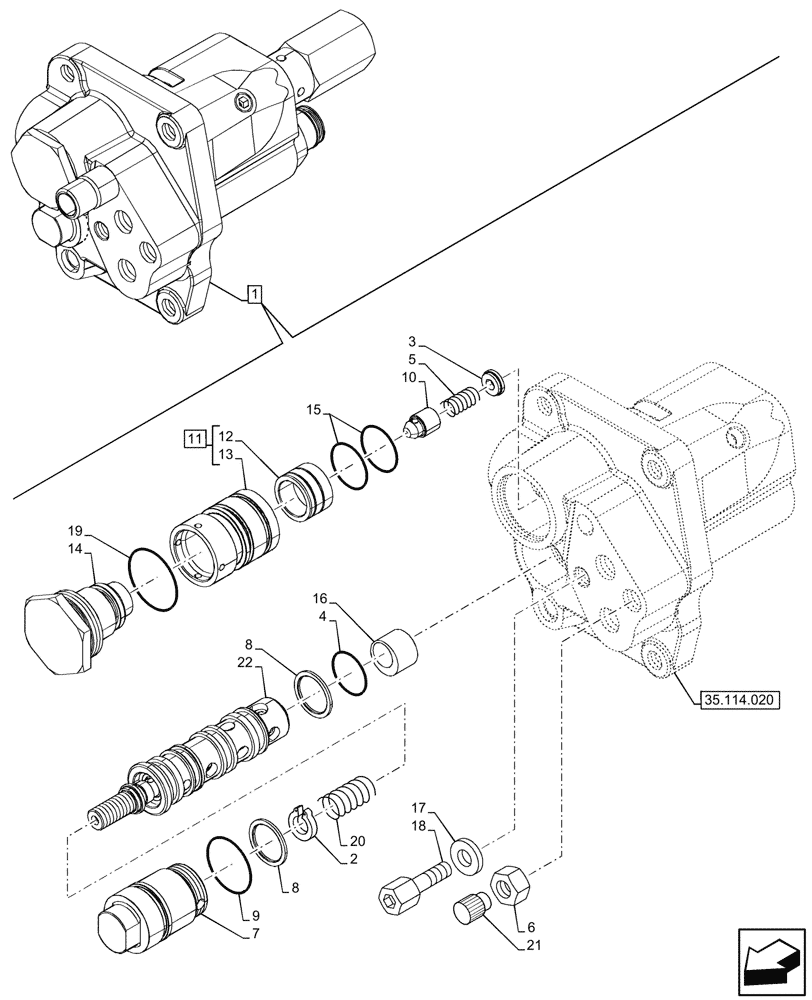

Запчасти Case IH JX95HC PLUS (35.114.030) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

5089469

CONTROL VALVE

ASSY, Incl 2 - 21

1шт.

2

13420376

SNAP RING,M12, Int

1шт.

3

5122030

SPRING WASHER,5mm ID x 11.7mm OD x 3mm Thk

1шт.

4

14454081

O-RING,1.051" ID x 0.07" Width

1шт.

5

5115469

SPRING,Compression, 7.7mm OD x 14.5mm L

1шт.

6

16100814

NUT,M8, Cl 8, DAC

1шт.

7

5117725

PLUG,M27 x 1.5

1шт.

8

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

2шт.

9

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

10

5117732

PIN,10.5mm OD x 15.5mm L

1шт.

11

5117731

SPOOL

ASSY, Incl 12, 13

1шт.

12

5117728

PISTON

1шт.

13

5117730

VALVE BODY

1шт.

14

5122029

PLUG,M32 x 1.5

1шт.

15

14457381

O-RING,17.12mm ID x 2.62" Width

2шт.

16

5170590

SPACER,12mm ID x 17mm OD x 12mm L

1шт.

17

10296160

SEALING WASHER,M12.2 x 18 x 1, Copper

1шт.

18

14360524

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

19

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

20

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

1шт.

21

5120798

KNOB

1шт.

22

5122219

VALVE SECTION

1шт.
