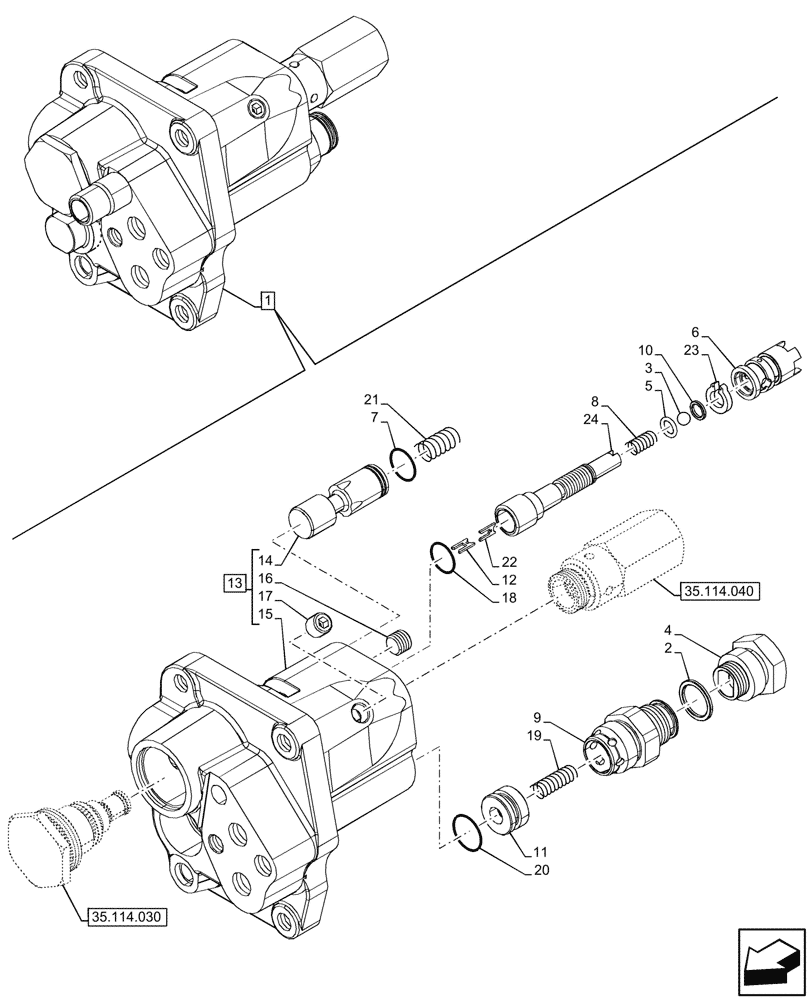

Запчасти Case IH JX95HC PLUS (35.114.020) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

5089469

CONTROL VALVE

ASSY, Incl 2 - 24

1шт.

2

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

3

20063580

BALL,13.49mm OD, Gr 100

1шт.

4

5117734

PLUG,M20 x 1.5

1шт.

5

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1шт.

6

5178017

SPOOL,16.5mm OD x 30.5mm L

1шт.

7

14457381

O-RING,17.12mm ID x 2.62" Width

3шт.

8

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

1шт.

9

5156291

HYD CONNECTOR,M24 x 1.5

1шт.

10

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

11

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

12

5148907

SPACER,3mm Thk

Upper

1шт.

13

5170596

BODY

ASSY, Incl 14 (Qty 1), 15 - 17

1шт.

14

5117727

SPOOL,16mm OD x 50mm L

2шт.

15

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 14

1шт.

16

13806421

SET SCREW,Hex Soc, M6 x 8mm

3шт.

17

5162458

PLUG,M10 x 1.25

2шт.

18

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

19

5117729

SPRING,Compression, 11mm OD x 44mm L

1шт.

20

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

21

5155844

SPRING,Compression, 11mm OD x 34mm L

1шт.

22

5148905

SPACER,3mm Thk

Lower

1шт.

23

13397476

SNAP RING,M10.8, Int

1шт.

24

5170591

PIN,16mm OD x 72mm L

1шт.
